Features:
Easy UPS Features & Benefits
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Protection
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

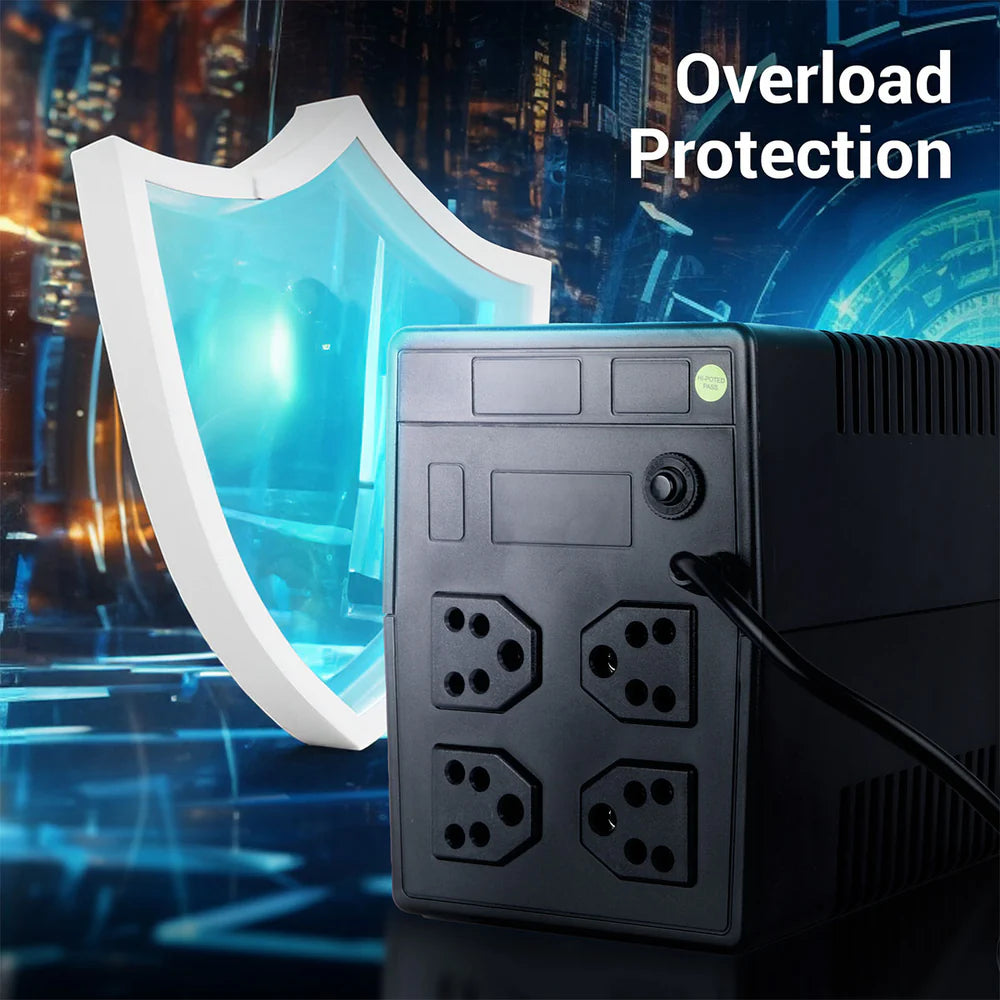

Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Cold-start capable
Provides temporary battery power when the utility power is out.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Output Specifications
The UPS delivers a maximum configurable output power of 1.2 kW (2.2 kVA). It operates with an output frequency of 50/60 Hz (±1 Hz, unsynchronised) and provides an output voltage of 230V. The system uses a line-interactive topology and produces a stepped approximation to a sine wave. Power transfer time is 6 milliseconds typically, with a maximum of 10 milliseconds, ensuring minimal interruption during power fluctuations.

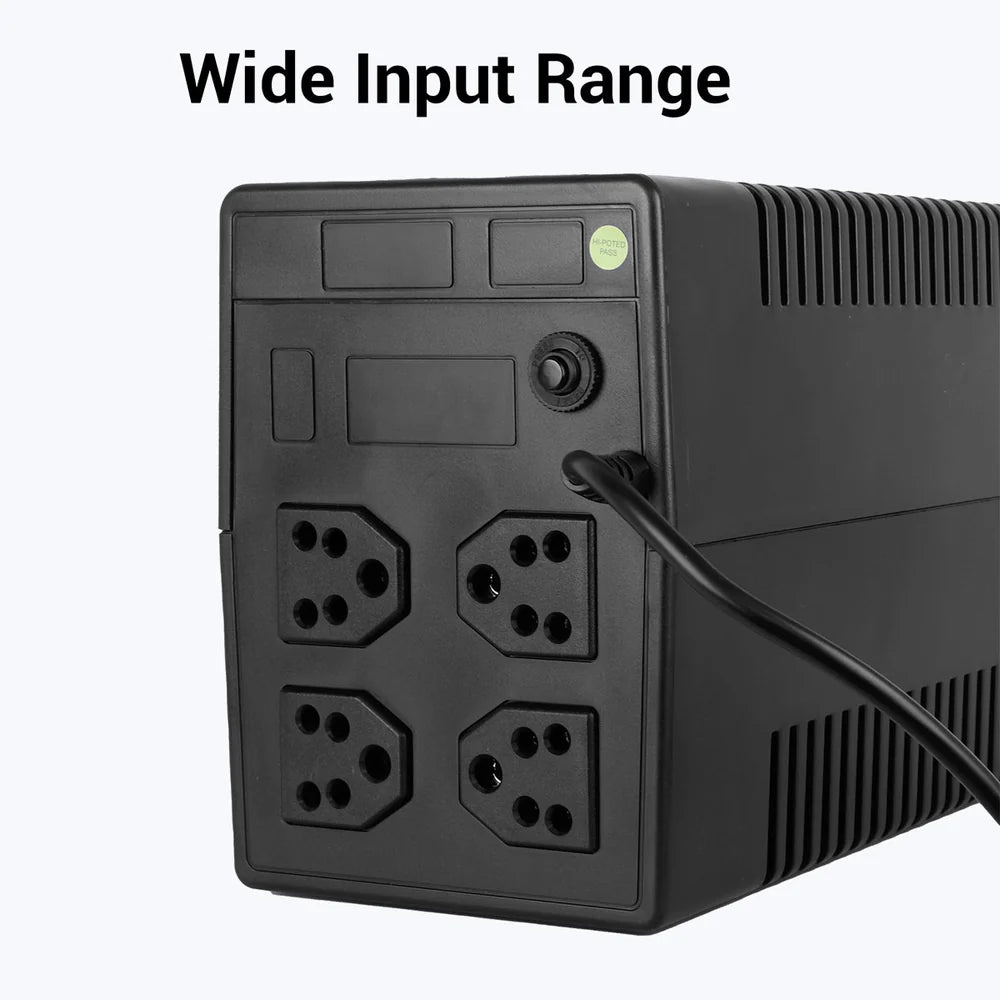

Input Specifications
The UPS supports an input frequency range of 40–70 Hz (±5 Hz) with auto-sensing capability. It operates within an input voltage range of 140V to 300V, making it suitable for unstable power environments. The unit includes one power cord and requires circuit breaker-based input protection.
Battery and Runtime
The UPS is equipped with a lead-acid battery system with a nominal battery voltage of 24V. It has a battery volt-amp-hour capacity of 216 VAh. Typical battery recharge time is approximately 6 hours, ensuring quick readiness after power restoration.
Communication and Management

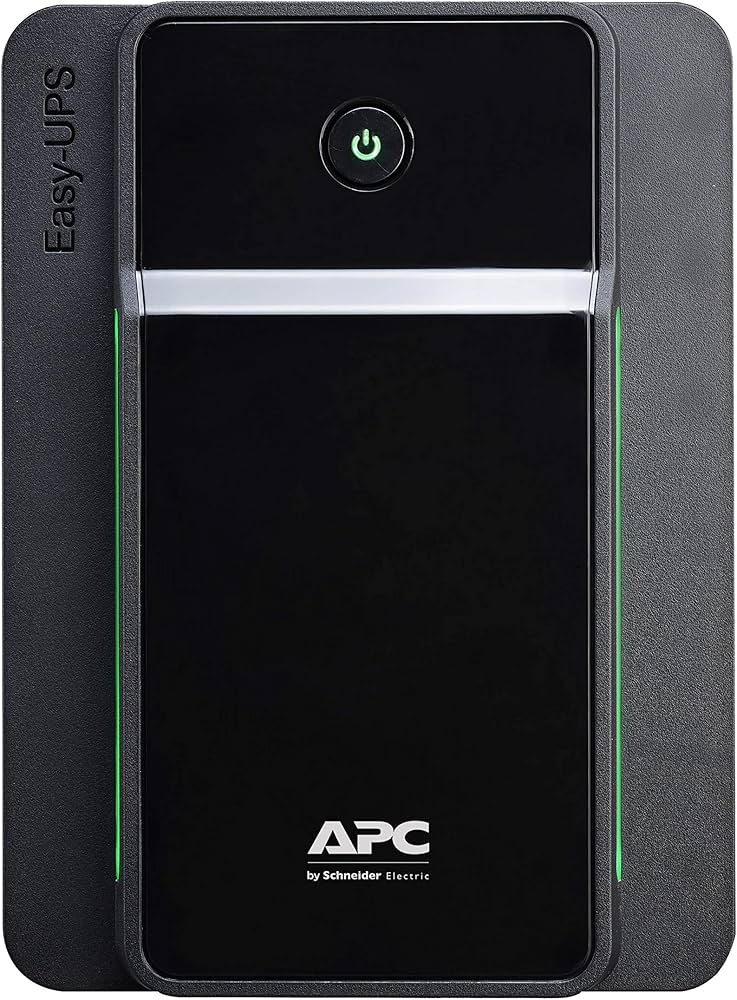

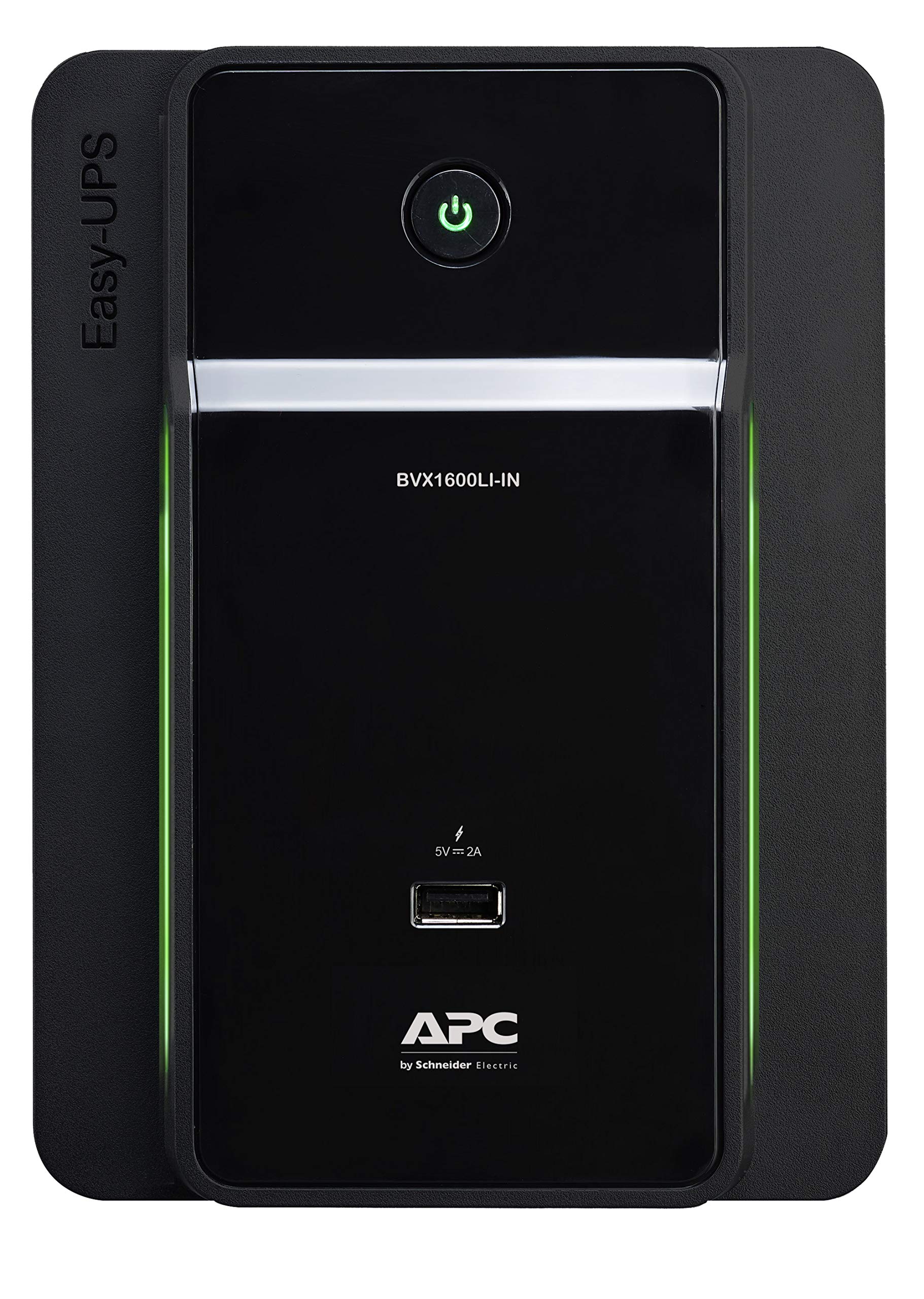

The front LED control panel provides clear indicators for online mode, battery mode, battery replacement alert, and overload status. Audible alarms notify users when the UPS is operating on battery, during low battery conditions, and in case of overload with a continuous warning tone.
Surge Protection and Filtering
The UPS offers surge protection rated at 255 joules, safeguarding connected equipment from electrical spikes and transient surges.

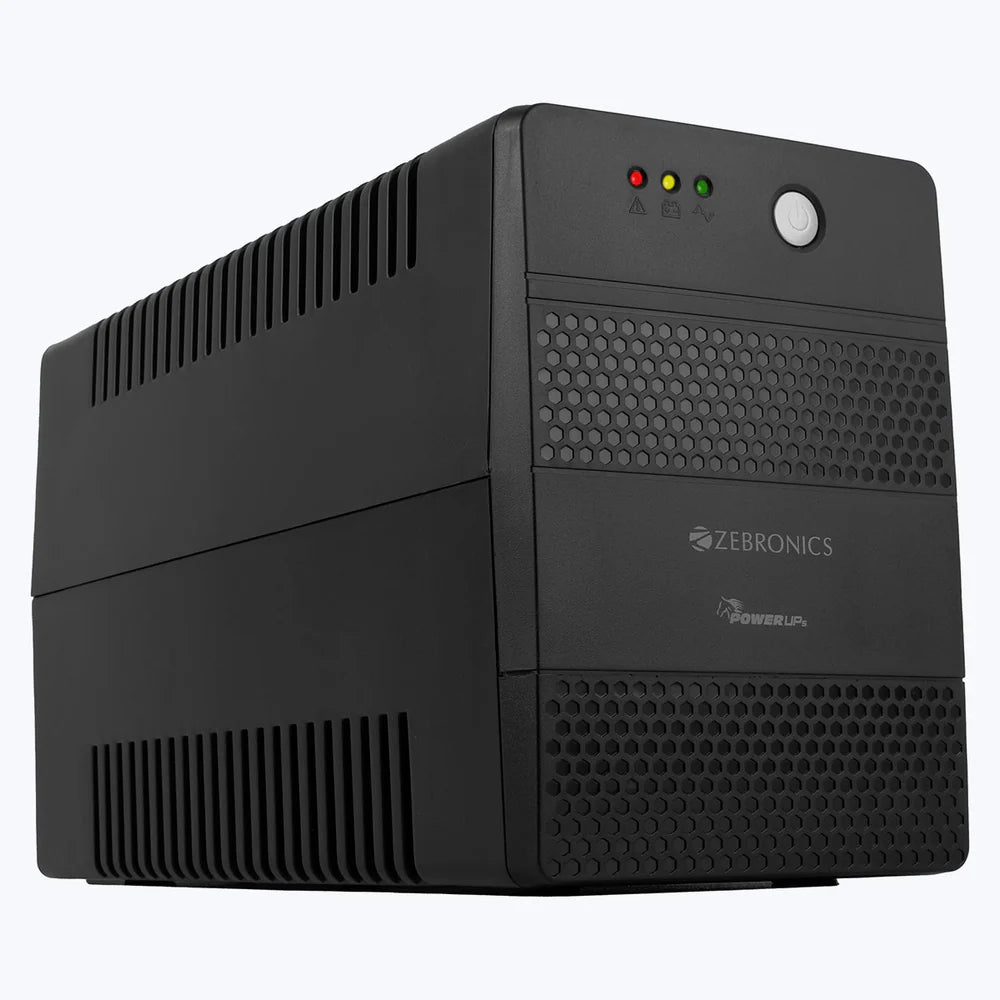

Physical Characteristics

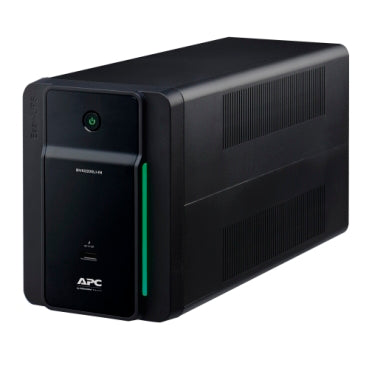

The unit features a black finish and compact tower design. Its maximum dimensions are 190 mm (height), 140 mm (width), and 390 mm (depth). The net weight is 12.2 kg, while the shipping weight is 13.2 kg. Shipping dimensions are 297 mm in height, 235 mm in width, and 495 mm in depth.
Environmental Conditions
The UPS is designed to operate in ambient temperatures ranging from 0°C to 40°C, with relative humidity between 0% and 95% (non-condensing). It supports operating elevations of up to 3000 meters. For storage, it tolerates temperatures from -20°C to 50°C, humidity up to 95%, and elevations up to 15,000 meters. The acoustic noise level is 40 dBA at 1 meter, ensuring quiet operation.
Protection and Compliance
The UPS has a protection class of IP20 and is BIS approved, meeting applicable safety and quality standards.
Warranty
The product includes a 2-year warranty on the UPS and a 1-year warranty on the battery.
Package Includes:
Note: Actual backup duration varies with load and usage conditions. Specifications and features are subject to change without notice.
