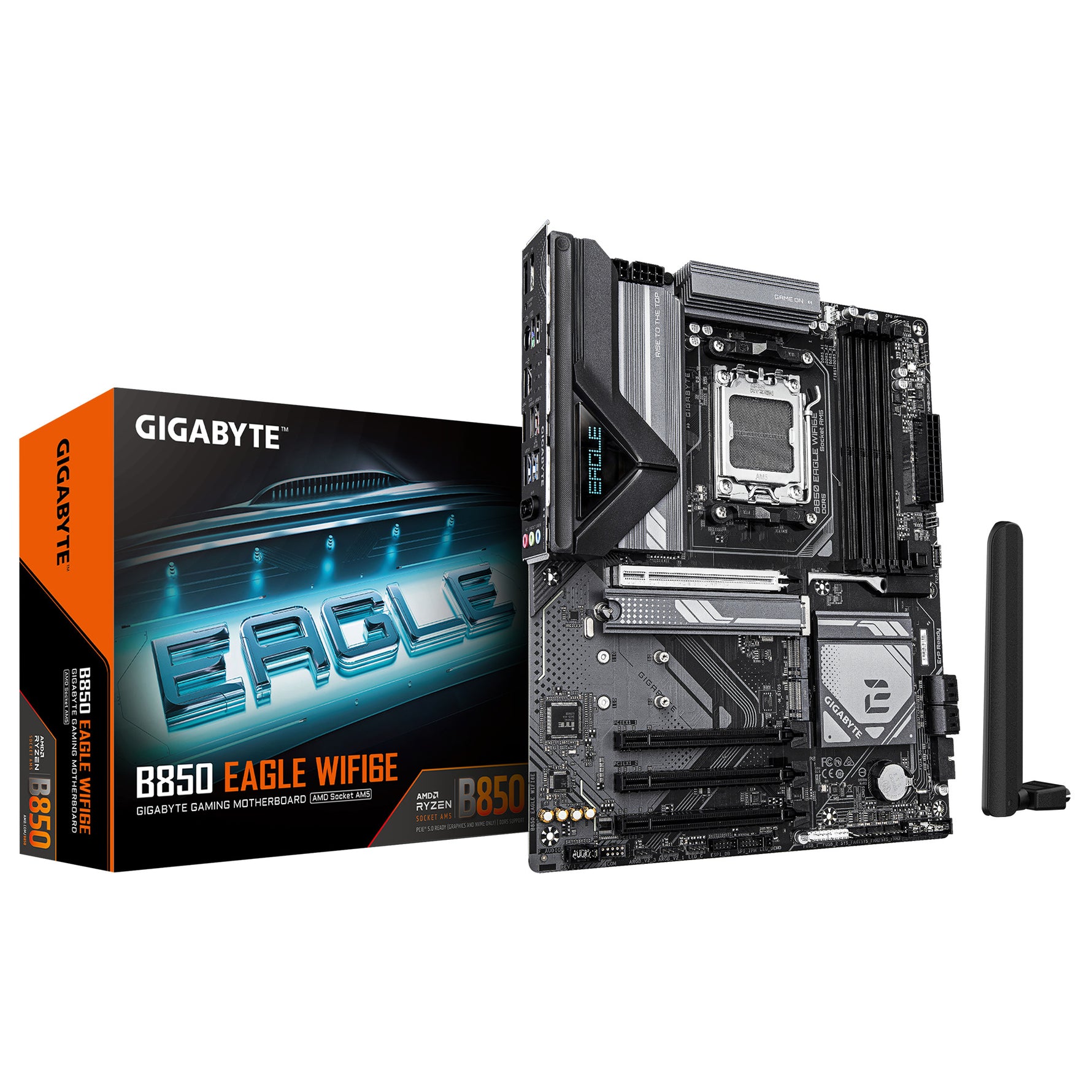

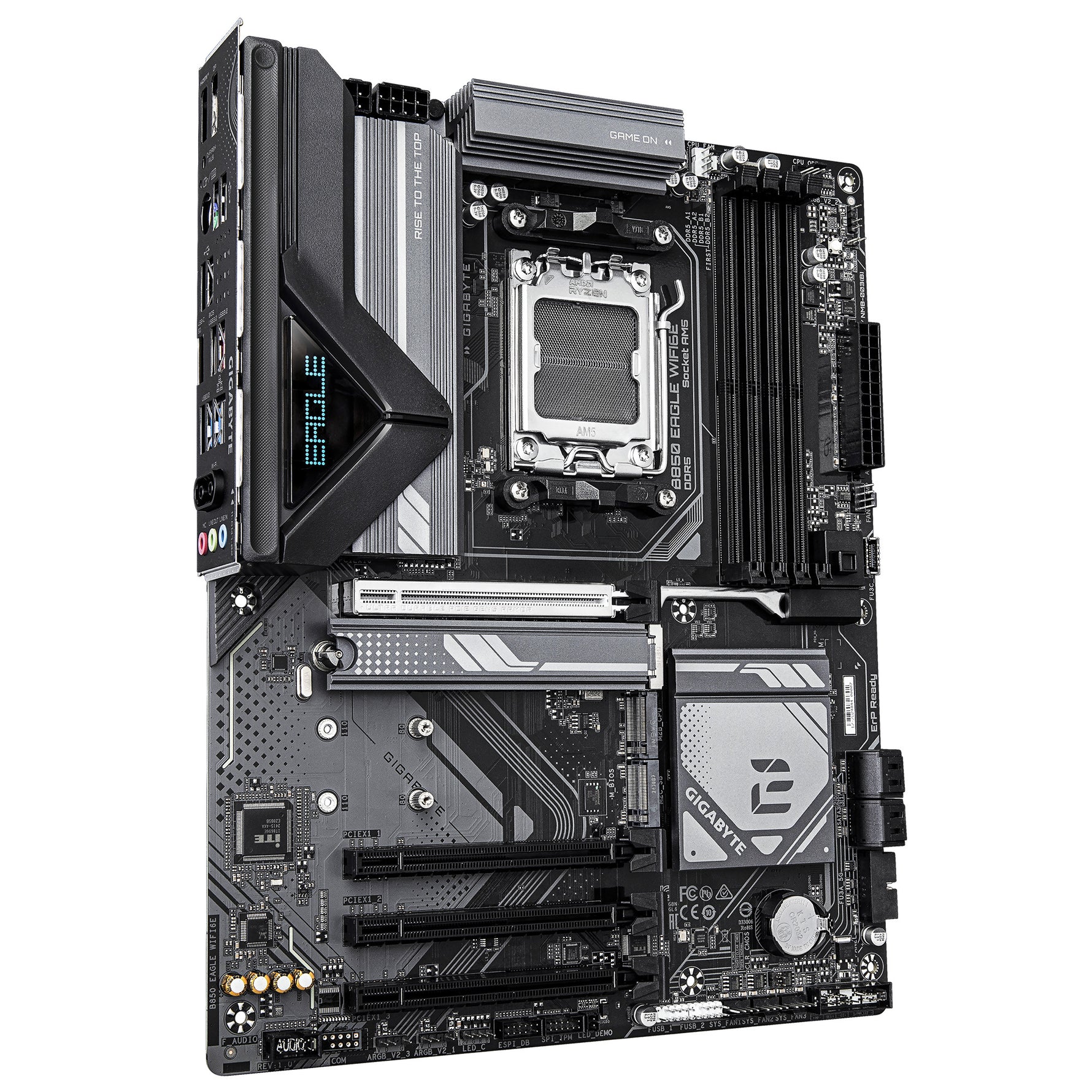

Gigabyte B850 EAGLE WIFI6E

With one-click acceleration, X3D Turbo Mode’s unique optimization parameters allow even Ryzen 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE‘s BIOS innovation.

Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.

This motherboard delivers consistent, high-powered performance to elevate your overclocking to the next level. 8 VCORE phases unlock the full power of your multi-core CPU while 2 SOC phases are optimized for integrated GPU performance and memory management within the CPU. 2 MISC phases provide reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Supercharge your online gaming with the Gigabit Ethernet RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, you’ll be able to elevate your gaming rig for online competition.

PCIe EZ-Latch Plus
Easy ejection with a single click for graphics cardsM.2 EZ-Latch Click
Tool-less installation for M.2 heat sinkM.2 EZ-Latch Plus
Tool-less installation for M.2 SSDs

With RGB FUSION, customize the RGB lighting with precise control over individual LEDs in the Gigabyte Control Center.



CPU Socket

AMD Socket AM5

Supported Processors

AMD Ryzen™ 9000 / 8000 / 7000 Series

Chipset

AMD B850

Memory Support

DDR5 up to 8200(O.C) MT/s, 4 DIMM slots, 256GB max, Dual channel, AMD EXPO™ & XMP support

Onboard Graphics

AMD Radeon™ Graphics (depends on CPU)

Display Outputs

1 x DisplayPort (3840x2160@144Hz, DP 1.4, HDR) 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR)

Audio

Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

LAN	Realtek® GbE LAN (1 Gbps)

Wireless

Intel® Wi-Fi 6E AX210 / Realtek® Wi-Fi 6E RTL8852CE (Bluetooth 5.3, 11ax 160MHz support)

Expansion Slots

1 x PCIe 5.0 x16 (Ryzen 9000/7000) 3 x PCIe 3.0 x1 (chipset)

Storage

3 x M.2 Slots (PCIe 5.0/4.0 depending on CPU) 4 x SATA 6Gb/s, RAID 0/1/5/10 support

USB Ports

Back Panel: 1 x USB-C 3.2 Gen 1, 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0 Internal: 1 x USB-C 3.2 Gen 1, 4 x USB 3.2 Gen 1, 4 x USB 2.0

Internal Connectors

24-pin ATX, 8-pin & 4-pin ATX 12V, 3 x M.2, 4 x SATA, RGB headers, fan headers, TPM header, Clear CMOS

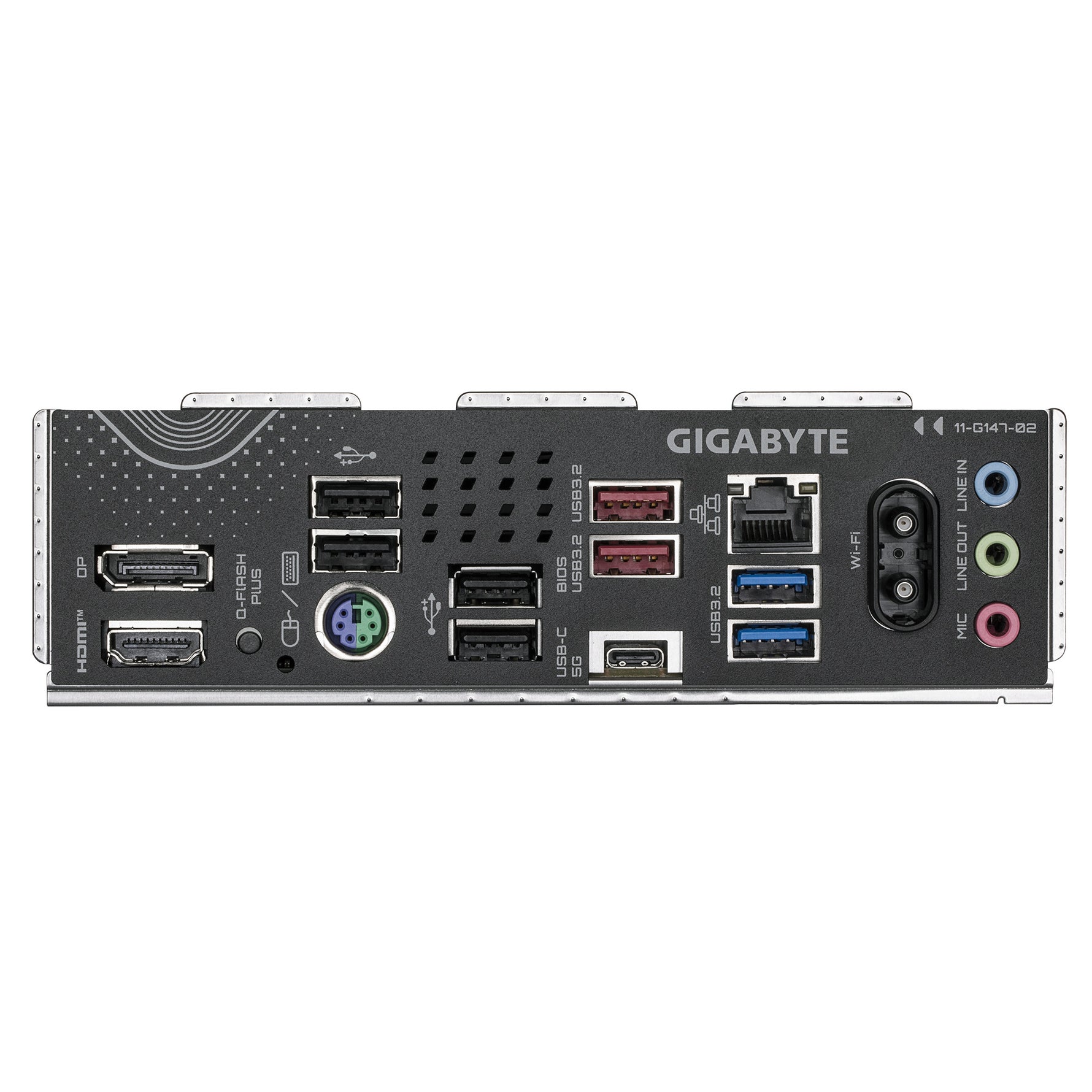

Back Panel Ports

1 x DP, 1 x HDMI, 4 x USB 2.0, 2 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 1, 1 x RJ-45, 2 x USB 3.2 Gen 1, 2 x antenna connectors, 3 x audio jacks

BIOS	256 Mbit flash, AMI UEFI BIOS

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton® Internet Security (OEM), LAN bandwidth management software

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

ATX (30.5cm x 24.4cm)
