Product Code:HELIOS-P2-1000G
Features:
Fully Modular
1000W 80 Plus Gold
ATX 3.1 & PCIe Gen 5.1 Ready
Native 12VHPWR Cable
High Quality Capacitor
Support C6/C7 Power State
Automatic Fan Speed Optimizing According to Temperature
Full DC-DC, LLC Resonant Circuit Design
Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP
Peak Performance And Reliability:

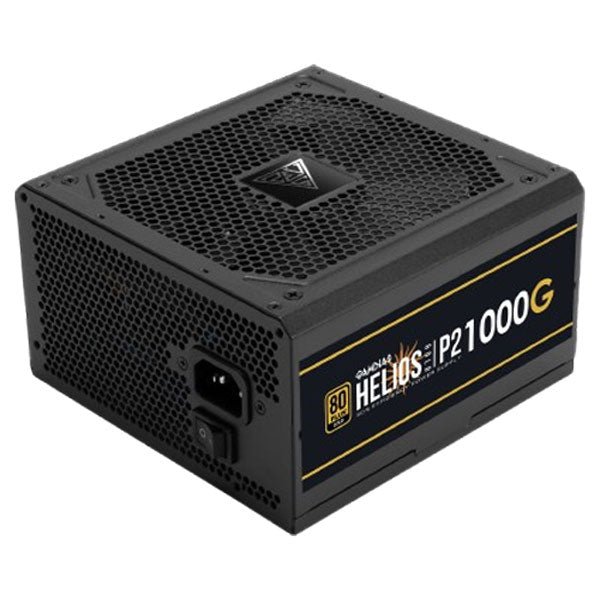

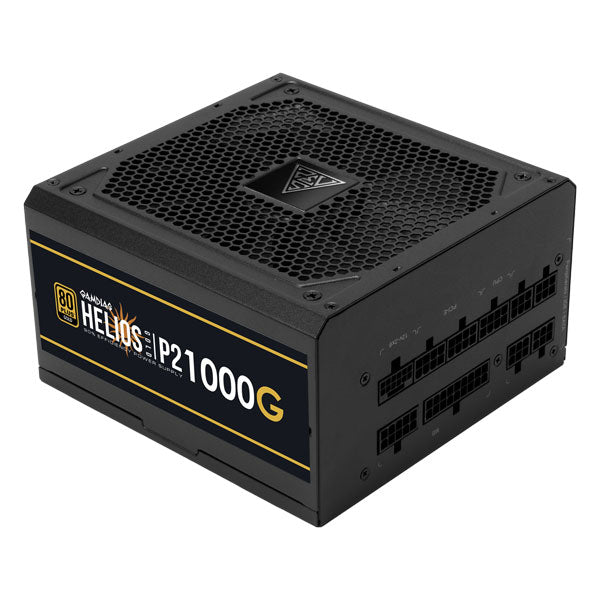

The HELIOS P2-1000G is a fully modular, next-generation power supply unit with 80 Plus Gold certification. It supports ATX 3.1 and PCIe Gen 5.1 standards, features high-quality capacitor, and includes a 135mm fan to ensure quiet operation while delivering consistent, reliable performance.

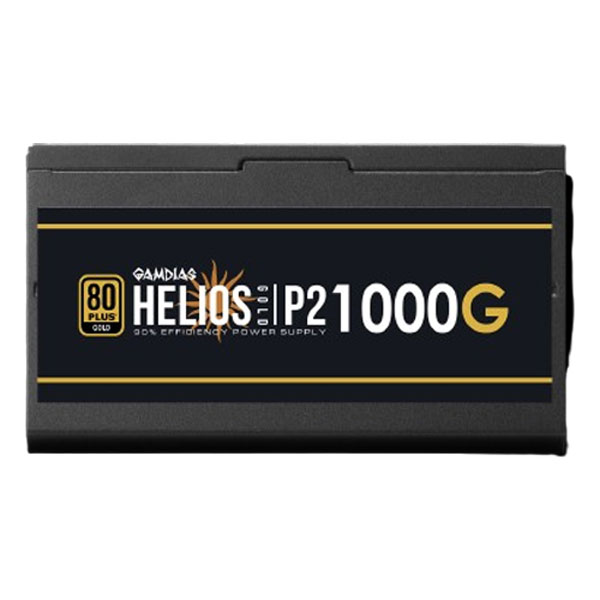

80 Plus Gold Certified:
Designed to meet 80 PLUS Gold level, providing stable power output up to 92% efficiency at 50% load reducing carbon footprint and power consumption.
ATX 3.1 & PCIe Gen 5.1 Ready:
HELIOS P2-1000G is designed to address ATX 3.1 standards and PCIe Gen 5.1 connector compatibility while offering up to 200% total power excursion. The HELIOS P2 Series can hold up to triple the GPU power excursion and twice the total power excursion
Native 12VHPWR Cable:
The native 16 PIN (12VHPWR) PCIe connector can deliver up to 600W for PCIe 5.1 graphics cards, providing powerful and stable performance and allowing the PSU to natively run high power GPUs.

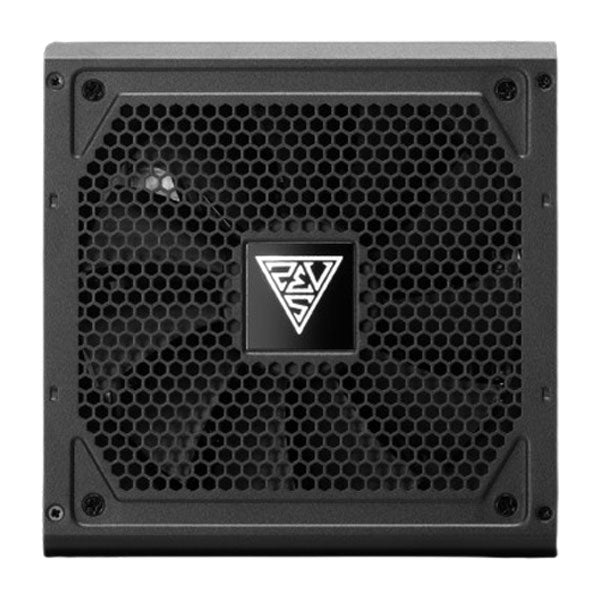

Smart Silent Fan:
Featuring a high-quality 135mm fan, providing excellent thermals, silent acoustics, and high reliability to ensure longevity at near-silent operation. Furthermore, the smart fan will adjust the fan speed and minimizes undesired noise.
High Quality Capacitor:
Made with reliable high-quality capacitor, providing great durability as well as offering the highest power stability.
LLC Resonant Circuit Layout:
Made with premium DC to DC structure with full bridge LLC resonance assist and 12V synchronous rectification providing a safe and stable output.
Heavy-Duty Protection:
This PSU offers complete protection, meeting full demands to help the system operate safely and stably.
Extensive GPU Support:
The HELIOS P2 is designed to support new NVIDIA and AMD graphics cards with increased power demands and different connectors, with additional support to a 12+4-pin VGA power connector (12VHPWR) and two 6+2-pin VGA power connectors.
Specifications:
| Model: |
HELIOS P2-1000G |
| Type: |
ATX12V v3.1 |
| Efficiency: |
Meet 80 PLUS Gold efficiency |
| Power Factor Correction: |
APFC with PF value of 0.99 |
| Support MB Sync: |
No |
| Dimension (L x W x H): |
150 x 150 x 86 mm |
| Support C6/C7 power state: |
Yes |

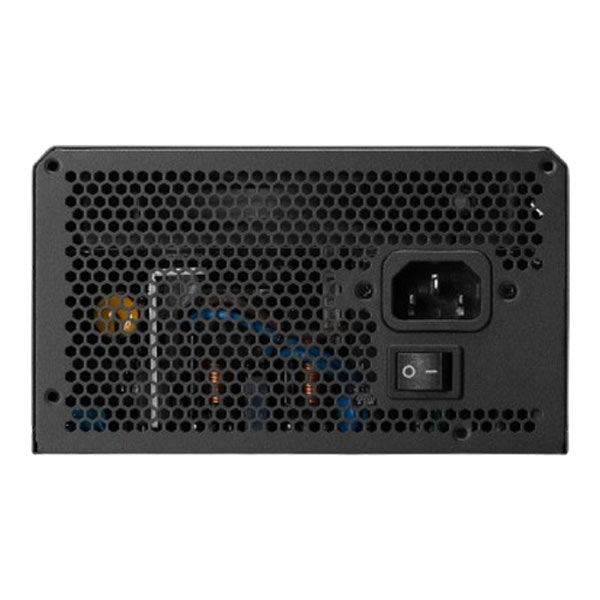

| AC Input: |
100-240V~ / 12-6A / 50-60Hz |
| DC Output: |
+3.3V / +5V / +12V / -12V / +5Vsb |
| Max. Output Current: |
20A / 20A / 83.3A / 0.3A / 3A |
| Max. Output Power: |
100W / 1000W / 3.6W / 15W |
| Total Power: |
1000W |
| Peak Power: |
1300W |
| Protection: |
OVP / UVP / OPP / SCP / OCP / OTP |

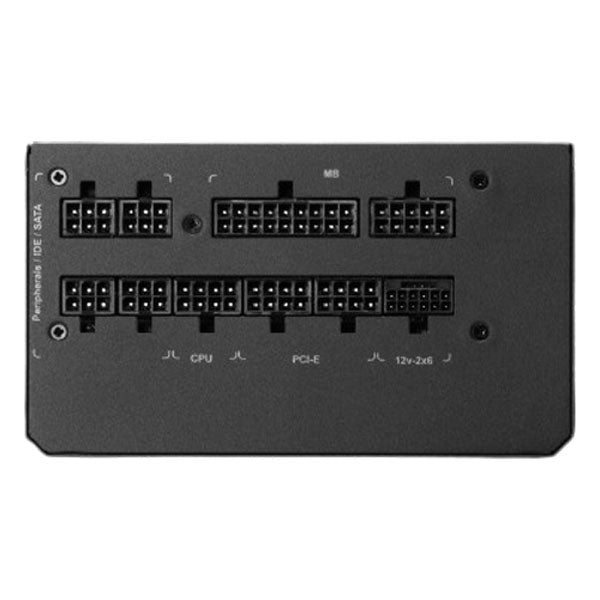

| Main Power: |
1 (24 Pin) |
| CPU: |
1 (4+4 Pin) / 1 (8Pin) |
| PCI-E: |
4 (6+2 Pin) |
| 12VHPWR: |
1 (12+4 Pin) |
| SATA: |
12 (5 Pin) |
| Molex: |
4 (4 Pin) |
| Floppy: |
1 (4 Pin) |
| Modular: |
Fully Modular |
| Flat Cable: |
Yes |
| Cooling System: |
135mm long-lifespan sleeve bearing |
| Silent Mode: |
No |
| DC to DC: |
Yes |
| Environmental Compliance: |
Erp Lot 6 |
| Warranty: |
10 Years |
| Note: |
***Features, price and specifications are subject to change without notice.
***Images used for representation purposes only
| Psu |
| Wattage |
1000 Watt |
| Series |
HELIOS |
| Certification |
80 Plus Gold |
| Modular |
FULLY MODULAR |
| PCIe Connector (6+2) |
4 |
| SATA Connector |
12 |
| Peripheral (4-Pin) |
4 |
| Warranty |
10 Years |
|
