EVGA SuperNova 1000 P5 Platinum 1000 Watt Fully Modular Smps

Features:

• 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
• 100% Japanese Capacitors ensure long-term reliability

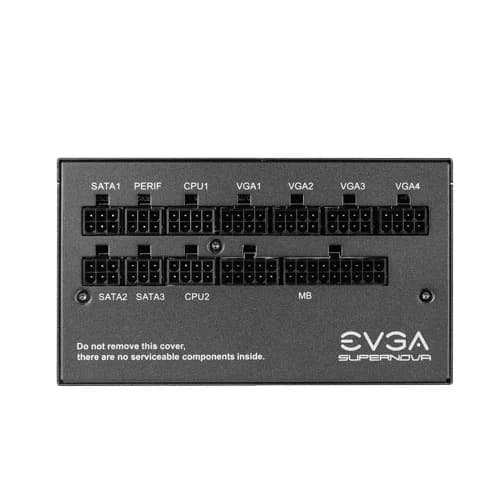

• Fully Modular to reduce clutter and improve airflow
• Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
• Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
• Active Clamp +DC to DC design for efficient operation
• DC-DC Converter improves 3.3V/5V stability
• Active Power Factor Correction
• EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
• NVIDIA SLI & AMD Crossfire Ready
• Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

Time To Buy Platinum

The EVGA SuperNOVA P5 joins the elite ranks of the EVGA 80 PLUS Platinum power supplies. These power supplies continue to push the envelope with the latest certifications and Intel® power-on standards. Replete with 80 PLUS Platinum-rated efficiency, a fully-modular cable design, 100% Japanese capacitors, and an ultra-quiet 135mm Fluid Dynamic bearing fan with EVGA ECO mode, these power supplies are built for performance and silence.

80 PLUS Certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load, this power supply is 92% efficient or higher.

active clamp design

The P5 power supplies also feature an active clamp circuit design, DC-to-DC converter, and active PFC to provide tight voltage regulation and low ripple and noise.

100% Japanese Capacitors

Get the most reliability and greatest performance with the use of the highest possible quality Japanese Capacitors.

EVGA eco mode

The P5 features a full-sized FDB fan in the chassis, which provides a longer life and quieter operation than traditional power supply fans. Enable EVGA ECO Mode to turn the P5 completely silent at low to medium loads.

Operating Temperature:0° to 50° C

Japanese Capacitors: 100%

ECO Mode: Yes

MTBF:100,000 Hours

Size: 86mm (H) x 150mm (W) x 200mm (L)

Approvals:TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement

Fan Size / Bearing:135mm Fluid Dynamic Bearing
