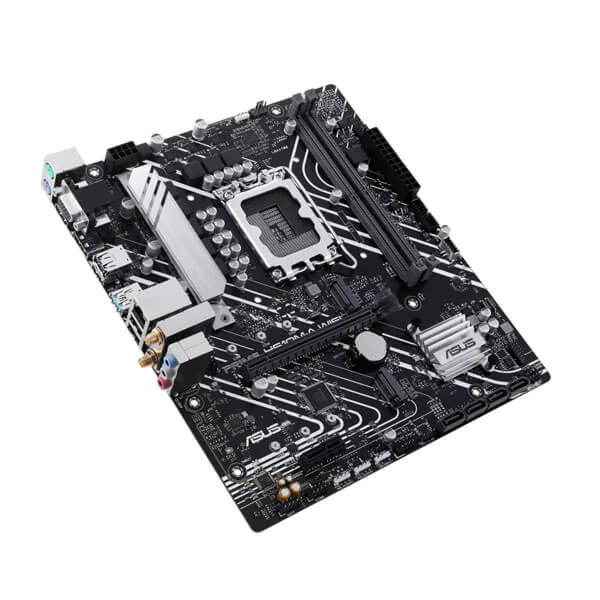

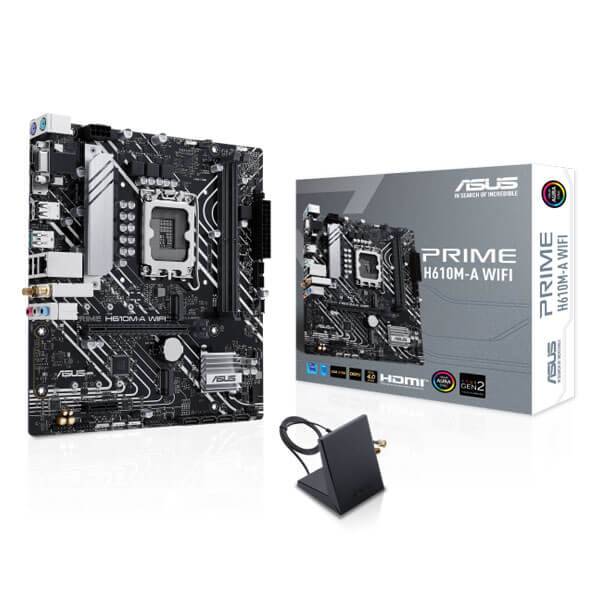

| Model |
PRIME H610M-A WIFI |
| CPU |
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset |
Intel® H610 Chipset |
| Memory |
2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) |
| Graphics |
- 1 x DisplayPort
- 1 x VGA port
- 1 x HDMITM port
Graphics specifications may vary between CPU types.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
|
| Expansion Slots |
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
|
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports |
| Ethernet |
1 x Intel® 1Gb Ethernet
ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth® v5.0 |
| USB |
Rear USB (Total 5 ports)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports |
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port |
| Internal I/O Connectors |
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header |
| Special Features |
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers |
| Software Features |
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |

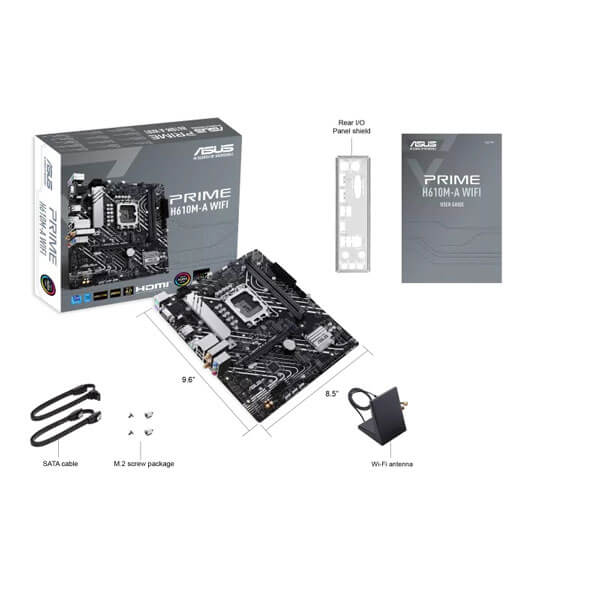

| Accessories |
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x Screw package for M.2 SSD
Documentation
1 x User guide |
| Operating System |
Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor |
mATX Form Factor
9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm ) |
| Warranty |
3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
| Motherboard |
| Platform |
INTEL |
| Socket |
LGA1700 |
| Chipset |
H610 |
| Max Memory Support |
96 GB |
| Supported Memory Type |
DDR5 |
| Form Factor |
Micro-ATX |
| Warranty |
3 Years |
| Note |
Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
|
|
