Product Code:PROART-Z890-CREATOR-WIFI
Features:
The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual Thunderbolt™ 5 ports, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.
Thunderbolt™ Connectivity
Get immersed in your creations with two Thunderbolt™ 5 ports and one Thunderbolt™ 4 port for connecting to all your compatible content-creation gadgets, enjoying up to 120 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the Thunderbolt™ 5 port

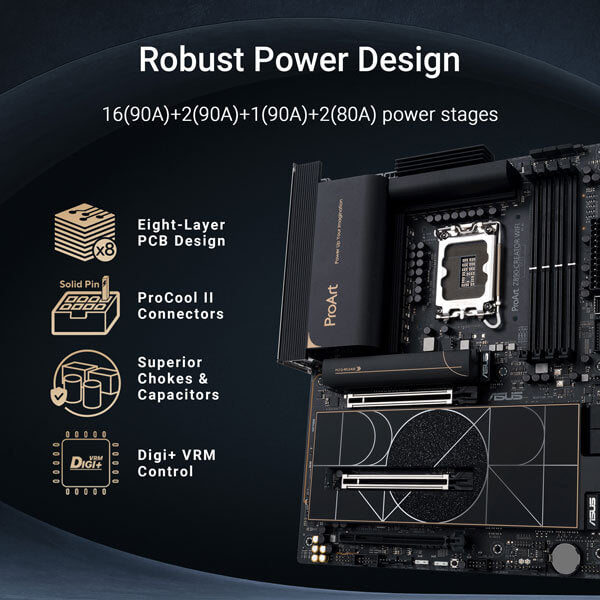

Robust Power Design
Designed to meet the needs of high-core-count CPUs, the ProArt Z890-CREATOR WIFI features 16(90A)+1(90A)+2(90A)+2(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 90 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for new Intel® Core™ Ultra Processors (Series 2).
AI Overclocking
Maximized CPU performance and predictions for ideal CPU and cooling settings push your system to its limits.
AI Cooling II
Balance the thermals and acoustics of any build with a single click
NPU Boost
The integrated Neural Processing Unit in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%
PCIe® Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
Trusted Stability
ProArt Z890-CREATOR WIFI is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
| Motherboard |
| Platform |
INTEL |
| Socket |
LGA1851 |
| Cpu Type |
Core Ultra |
| Chipset |
Z890 |
| Memory Speed |
up to 9066+ |
| Max Memory Support |
256 GB |
| Supported Memory Type |
DDR5 |
| Channel Supported |
Dual Channel |
| Memory Feature |
Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Support DIMM Fit
Support DIMM Flex
|
| Graphics Port |
1 x HDMI,2 x Intel® Thunderbolt 5 ports, 1x Intel Thunderbolt 4 ports |
| Expansion Slots |
Intel® Core™ Ultra Processors (Series 2)
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
Intel® Z890 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support Brand website
- To ensure compatibility of the device installed, please refer to Brand website for the list of supported peripherals.
|
| Wireless Networking |
WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports |
2 x Thunderbolt™ 5 USB Type-C® ports
1 x USB4 / Thunderbolt™ Type-C®port
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI™ port
1 x Wi-Fi module1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x BIOS FlashBack™ button
|
| Internal I/O Connector |
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over voltage jumper
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
|
| Form Factor |
ATX |
| Warranty |
3 Years |
| Note |
Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
|
