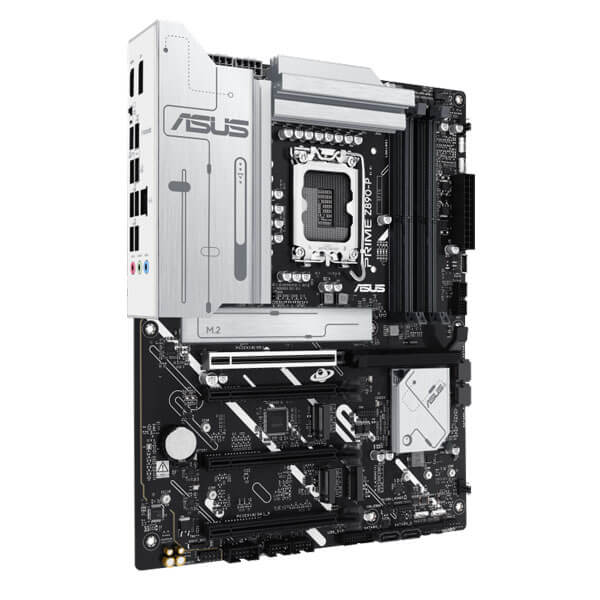

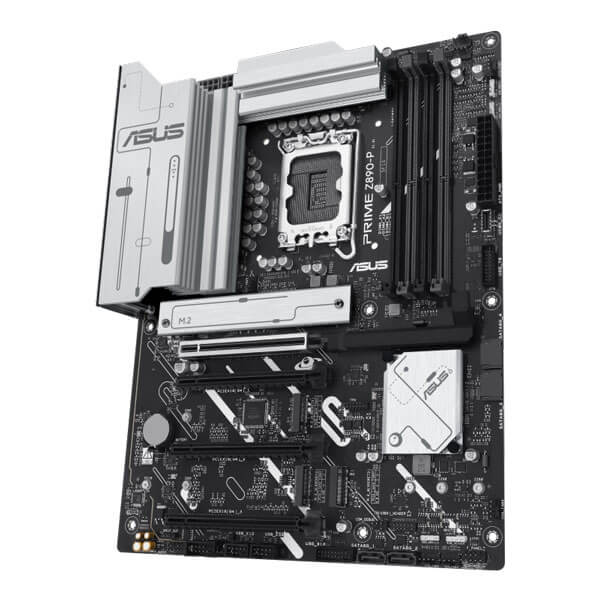

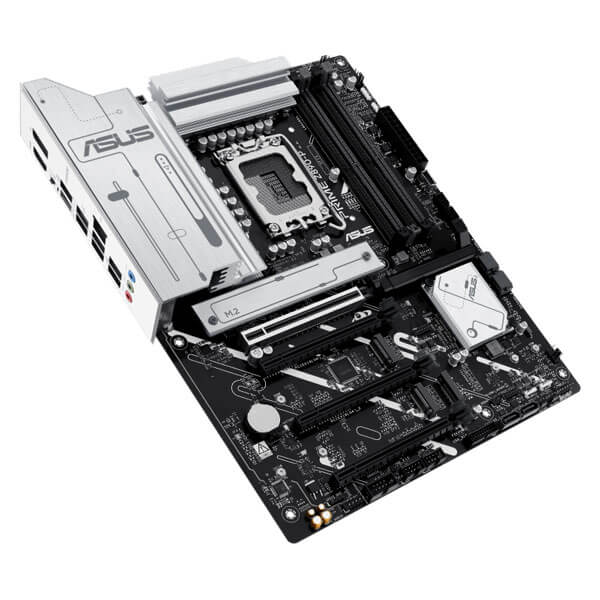

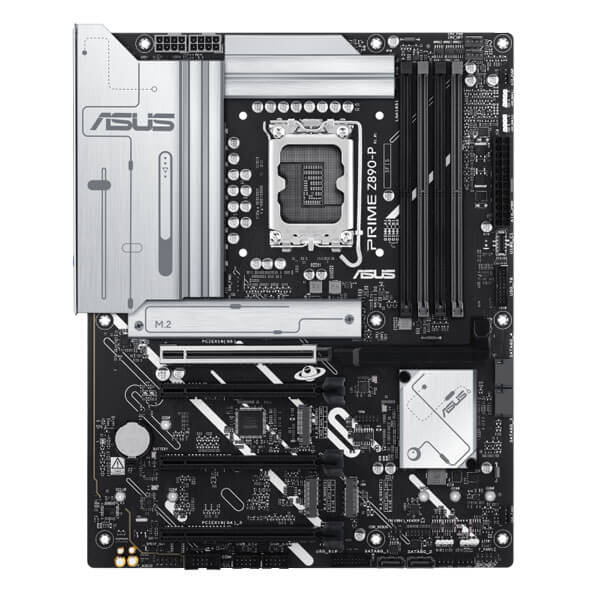

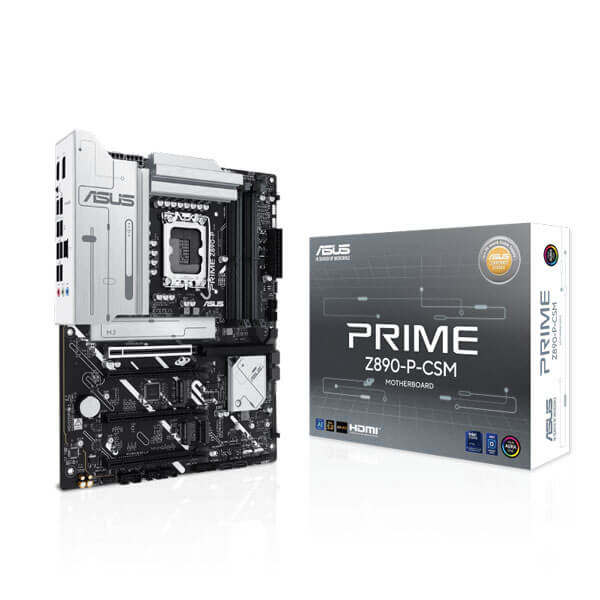

Product Code:PRIME-Z890-P-CSM
Features:
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Cooler by design
The PRIME Z890-P-CSM motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
SafeSlot
PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
Pre-mounted I/O shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
PCIe 5.0 slot
The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.
Empowering connections
The PRIME Z890-P-CSM motherboard offers a versatile range of connectivity, including the latest version of PCI Express, while an arsenal of USB ports includes Type-C® connections expands compatibility and bandwidth even further.
| Motherboard |
| Platform |
INTEL |
| Socket |
LGA1851 |
| Cpu Type |
Core Ultra |
| Chipset |
Z890 |
| Memory Speed |
up to 8666+ |
| Max Memory Support |
256 GB |
| Supported Memory Type |
DDR5 |
| Channel Supported |
Dual Channel |
| Memory Feature |
Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Brand website. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
|
| Graphics Port |
1 x DisplayPort,1 x HDMI,1 x USB 20Gbps port |
| Expansion Slots |
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
|
| Back Panel I/O Ports |
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
|
| Internal I/O Connector |
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
|
| Form Factor |
ATX |
| Warranty |
3 Years |
| Note |
Features, Price, Specifications are subject to change without notice. Images used for representation purposes only
|
