Product Features

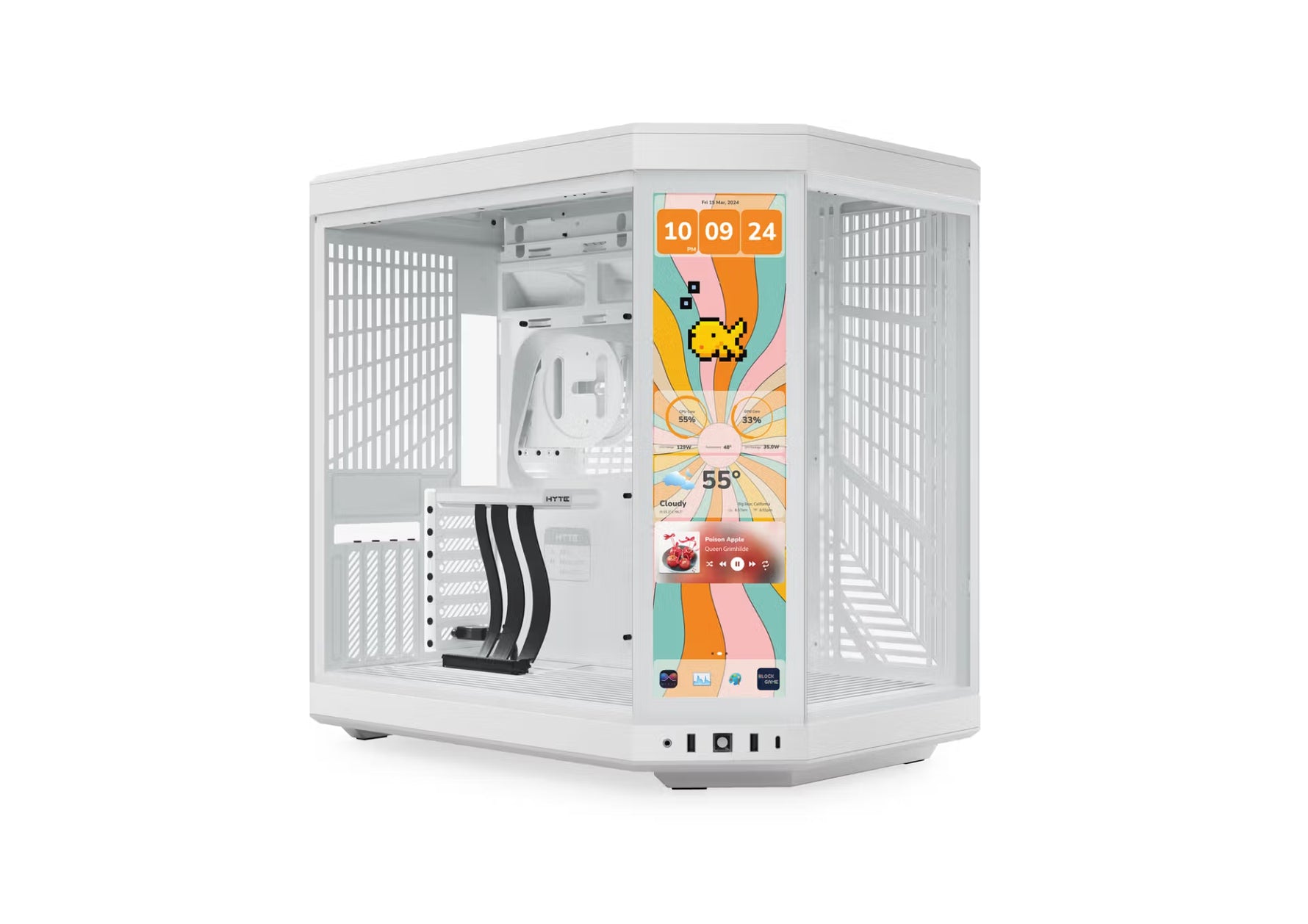

Mesmerizing 14.9" Integrated IPS Touchscreen
At a 682 x 2560 (2.5K) resolution and 60Hz refresh rate, this capacitive IPS touchscreen delivers an insanely crisp and buttery smooth visual experience with 10-point multi-touch capability, unlocking a magnitude of possibilities and extensive screen customization powered by HYTE Nexus software. Our bigger, brighter, 3rd generation panel features a larger 14.9" display with a 43% higher brightness for a more immersive user experience. All in a single package integrated into the case chassis structure, pioneering meaningful digital interaction with the best display ever in a case
Massive 4 Slot Vertical Graphics
Y70 grows GPU support to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful of graphics cards into your build with ease. Additionally, the cold floor cooling down below can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU.
Included Luxury PCIE 4.0 Riser Cable
Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.
Included Luxury PCIE 4.0 Riser Cable
Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.
Unified Modern Aesthetic
With 4 unique colorways, Y70 puts your build front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive maintenance.
TECH SPECS
| Type |
Dual Chamber Mid-Tower ATX Case |
Exterior Dimensions |
470 x 320 x 470 mm |
| Volume (L) |
70.7 |
Motherboard Sizes |
ITX, mATX, ATX, EATX |
| Expansion Slots |
7 half + 4 full height |
Riser Cable Included |
Yes, PCIE 4.0 x 16 |
| I/O |
1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack |
Dust Filters |
Top, Side, Bottom |
| Top Fans |
3x 120 mm / 2x 140 mm |
Top Radiator |
120-360, 140-280 @ 68 mm thick |
| Rear Fans |
1x 120/140 mm |
Rear Radiator |
1x 120/140 mm |
| Side Fans |
3x 120 mm / 2x 140 mm |
Side Radiator |
120-360, 140-280 @ 125 mm thick |
| Bottom Fans |
3x 120 mm / 2x 140 mm @ 32 mm thick |
Max Video Card Length |
422 mm |
| Max Video Card Thickness |
105 mm |
Max CPU Cooler Height |
180 mm |
| Max PSU Length |
235 mm |
Storage |
2x 3.5" HDD or 4x 2.5" SSD |
| Warranty |
4 Years |
SKU (Touch) |
CS-HYTE-Y70TTI-WW / CS-HYTE-Y70TTI-WB / CS-HYTE-Y70TTI-BB / CS-HYTE-Y70TTI-RB |
Tech Specs for Touch Screen
| Panel Technology |
IPS |
Screen Size (Diagonal) |
14.9 inches |
| Resolution |
682 x 2560 (2.5K) |
Pixels Per Inch |
178 |
| Dot Pitch |
0.007 mm |
Brightness |
500 nits |
| Contrast Ratio |
1000:1 |
Viewing Angle |
80 degrees |
| Refresh Rate |
60 Hz |
Pixel Response Time |
30 ms |
| Touch Input |
Yes, 10-Point Multi-Touch |
Input Connections |
USB 2.0 Header, SATA Power, DisplayPort |
| Nexus Powered |
Yes, Nexus Touch |
Removeable Glass Panels
Enthusiasts seeking to maximize the cooling potential of their chassis can take off the 3-piece panoramic glass for a hybrid open frame design
Extensive Cable Management Space
Meticulously placed routing channels and tie down points in the Y70Ti ensure that the rear of the case looks just as beautiful as the front
