Product Code:TALOS-E3-MESH
Features:
- 5.0mm Perforated Front Panel
- Sync with 5V ARGB Motherboard
- Tempered Glass SIde Panel
- 3 Built-in 120mm ARGB Fans
- Tool-Free Installation Tempered Glass Window
- One Touch to Easily Switch RGB Streaming Lighting Style
- Supports Motherboards up to ATX
- Power Cover Design
- Magnetic Dust Filter
Forged For Airflow

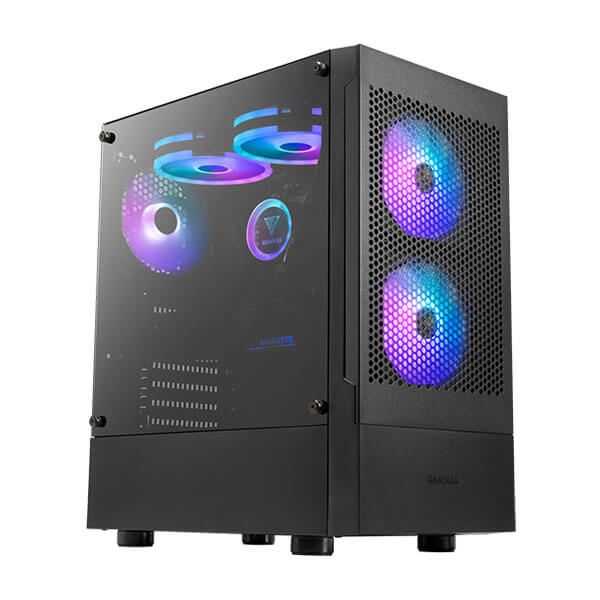

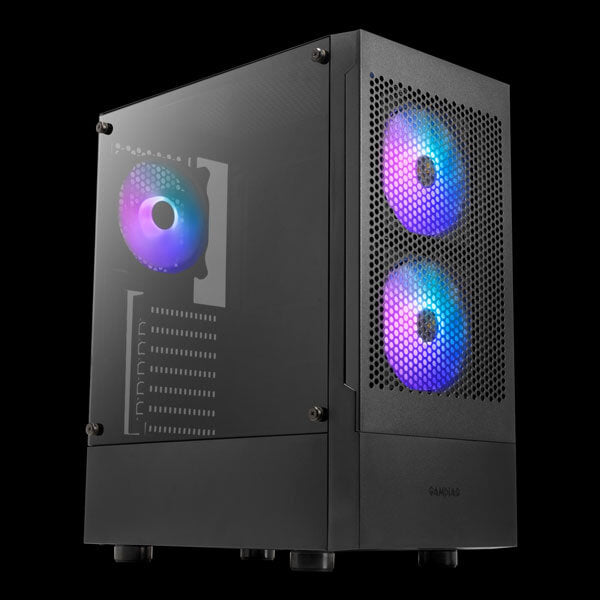

TALOS E3 MESH Series, available in matte black is a mid-tower case that offers a seamless combination of compact design and airflow performance. The case features 3 built-in 120mm ARGB fans with a 5.0mm perforated front panel to leverage airflow performance while achieving a minimalist style with tempered glass side panels and a PSU cover design.

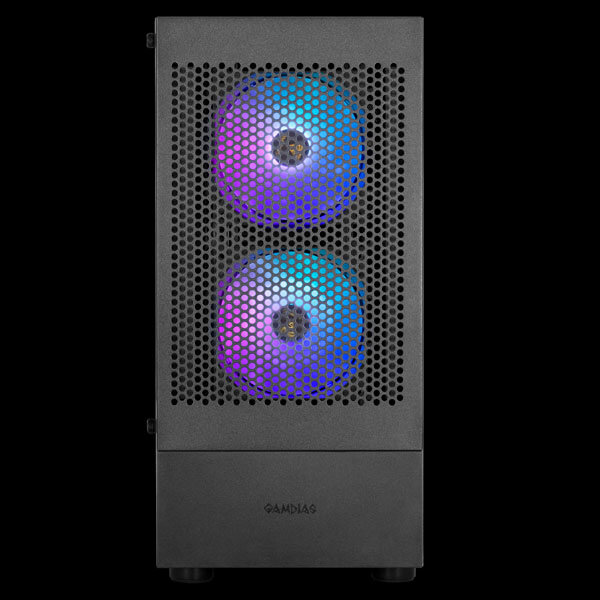

Vented Front Panel
The TALOS E3 MESH comes with a highly perforated front panel with 5.0mm air vents optimized to provide superior air intake and improved temperatures.
3 Built In ARGB Fans
The case is equipped with 3 built-in 120mm ARGB fans to provide robust airflow and an RGB visual feast.

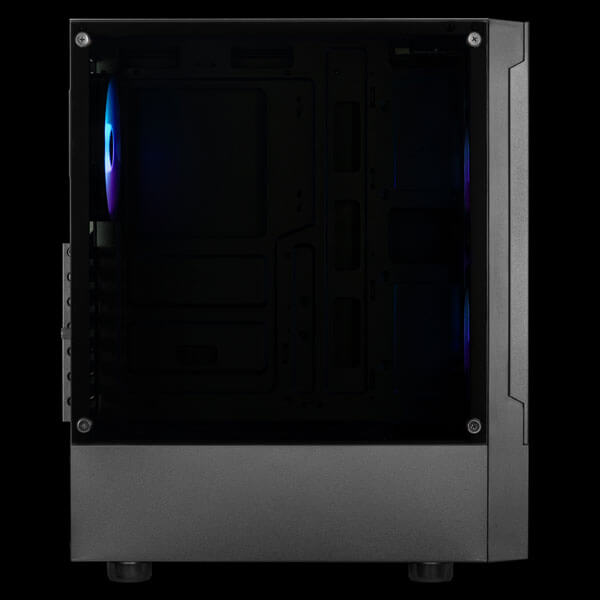

Show Off Your Build
TALOS E3 MESH supports system-wide ARGB to compatible motherboards with lighting synchronization fully displayed by the perforated front panel and the tempered glass side panel.
Simple and Accessible

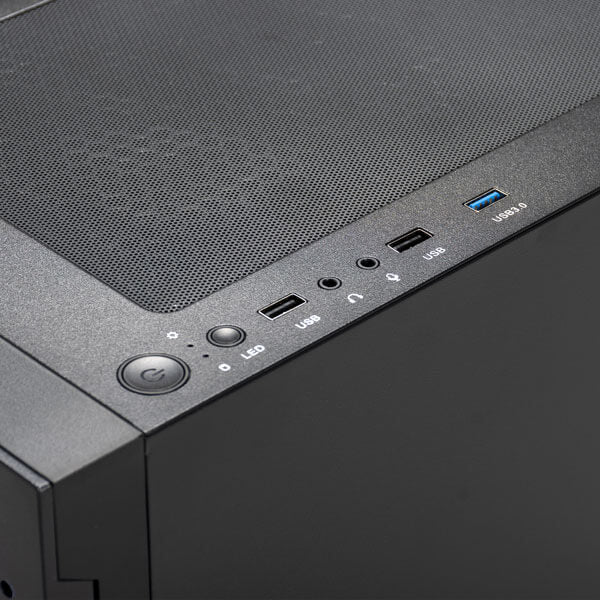

The I/O is equipped at the top front of the case, featuring 2x USB port, 1x USB 3.0 port, LED lighting controls, and additional audio connectivity
Cooling Compatibility
TALOS E3 MESH supports two 120mm or 140mm fans up front. Multiple mounting points for 360/280/240mm radiators up front, and 280/240/120mm radiator at the top.

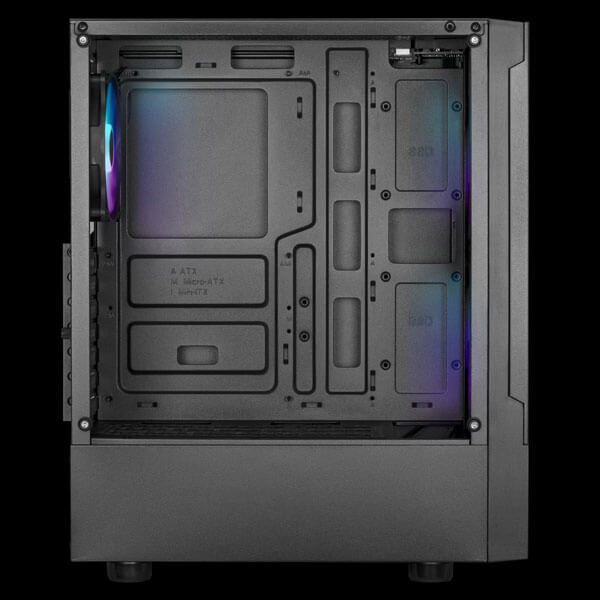

Interior Accommodation
Designed with a compact form factor, the case offers the option to house up to ATX motherboards and VGA cards up to 300mm.

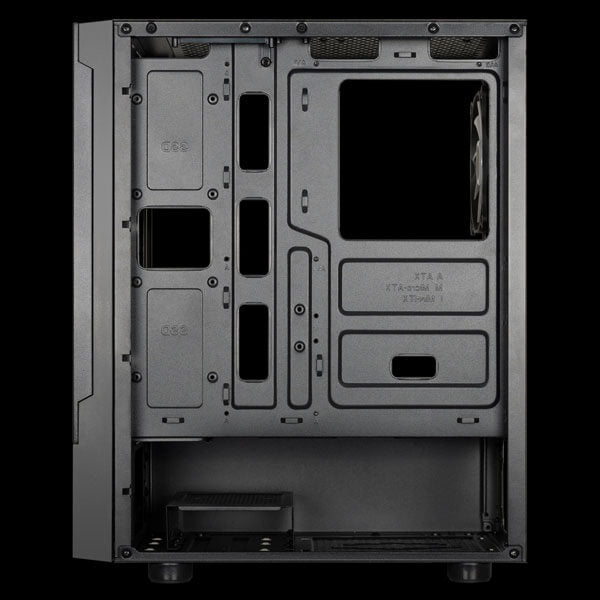

Flexible Storage Solution
The interior configuration has ample room for cable management optimization and supports PSU lengths up to 150mm.
Magnetic Dust Filter
In order to make cleaning out dust easier than ever, the case is equipped with dust filters on the top and bottom of the case.
Specification:
| Model |
TALOS E3 MESH |
| Color |
Black |
| Case Type |
MID Tower |
| MB Support |
ATX、Micro-ATX、Mini-ITX |
| Synchronization |
5V 3-Pin Addressable Header |
| Expansion Slots |
7 |
| Material |
SPCC & ABS & Tempered glass |
| Window |
Left |
| Radiator Support |
Top: 240mm / Front: 360mm ( HDD is removable to support 360 AIO in front )、280mm / Rear: 120mm |
| Fan Support |
Top: 2 x 120mm / Front: 2 x 120mm、 2 x 140mm / Rear: 1 x 120mm |
| Pre-installed Fans |
Front: 2 x 120mm ARGB Fans / Rear: 1 x 120mm ARGB Fan |
| Drive Bays |
2 x 3.5" or 1 x 2.5" + 1 x 3.5" (HDD Cage) / 2 x 2.5" |
| I/O Port |
USB 3.0 x1, USB 2.0 x2, HD Audio x1, Fan LED Control x1 |
| Clearance |
CPU cooler height limitation: 160mm
VGA length limitation: 300mm
PSU length limitation: 150mm |
| Dimension (L x W x H) |
363 x 210 x 447 mm |
| Net Weight |
4.72 kg / 10.38 lb |
| Warranty |
1 Year |
| Note |
*** Features, Price, Specifications are subject to change without notice.
| Cabinet |
| Cabinet Size |
MID-TOWER |
| Color |
Black |
| Material |
SPCC, ABS, Tempered Glass |
| Expansion Slots |
7 |
| Motherboard Size |
ATX,M-ATX,M-ITX |
| Max CPU Cooler Height |
160mm |
| Max PSU Length |
150mm |
| Max Gpu Length |
300mm |
| Max 3.5" HDD |
2 |
| Max 2.5" SSD |
2 |
| Dust Filters |
Top |
| Pre Installed Fans |
3 |
| Max Fan Support |
5 |
| Radiator Support |
360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel |
USB 3.0, USB 2.0, HD Audio, LED Control |
| Warranty |
1 Year |
| Note*** |
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
|
|
