Product Code:ATLAS-P2-CG
Features:
- Seamless Tempered Glass Display
- One-piece Curved Glass Panel
- 4 Built-in 120mm ARGB PWM Fans
- Includes Fan Hub & Velcro Straps
- Customized Monitor for System Information and Ambient Temperature
- Supports Connector-hidden Motherboards
- Fits Mini-ITX, Micro-ATX and ATX motherboards
- Perforated Air Vent PSU Chamber
- Compatible with 430mm GPU
- Magnetic Dust Filter

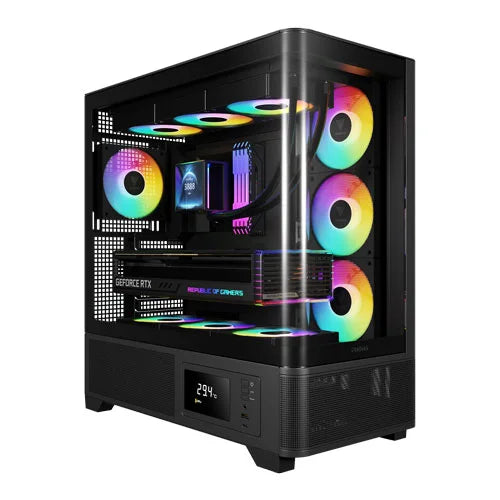

The ATLAS P2 CG features a seamless curved glass design with four built-in ARGB PWM fans for optimal airflow and a customizable monitor for real-time system information. Its one-piece curved glass panel offers a panoramic view, elegantly showcasing components. Supporting BTF motherboards for a clean setup, the ATLAS P2 CG delivers limitless potential and a sophisticated visual experience.
IMMERSIVE PANORAMIC VIEW
The ATLAS P2 CG case features a single 270-degree tempered glass panel, offering an immersive panoramic view of the interior. This design eliminates metal corner obstructions, allowing for a seamless display of internal components.
POWERFUL VENTILATION
The ATLAS P2 CG is built with perforated air vents throughout the case, vents perforated on the side panel, top panel, PSU chamber, and back exhaust to ensure superior airflow configurations.
4 ARGB PWM FANS WITH BUILT-IN FAN HUB
Featuring four built-in silent PWM ARGB fans, the case provides exceptional lighting and finely tuned airflow with minimal noise. The included 8-port PWM ARGB fan hub allows for easy management and synchronization, ensuring a cohesive lighting setup that perfectly complements the high-performance, quiet operation of the fans.
FLAWLESS VIEW
The ATLAS P2 CG case supports connector-hidden motherboard (BTF motherboard), enabling cables to plug in from the back for a cleaner front appearance and enhanced PC setups.
MONITOR REAL-TIME STATUS
The embedded monitor displays real-time system information including CPU, GPU, and ambient temperature adjustable via ZEUS CAST software. Users can also switch between CPU/GPU/AMB/OFF modes through the I/O
COOLING SUPPORT
The ATLAS P2 CG can accommodate up to 10 fans and offers flexible options for the installation of radiators at the top, side, bottom and rear.
INTERIOR ACCOMMODATION
The case offers the option to house up to ATX motherboards, air coolers with 180mm RAM clearance, and VGA cards with lengths up to 430mm.
STORAGE COMPATIBILITY
The ATLAS P2 CG supports installation of up to 4x 2.5" or 3 x 2.5"+1x 3.5" and can accommodate PSU lengths up to 220mm.
CONCISE I/O DESIGN
The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, one USB 3.0 ports, a fan LED control, a monitor mode switch, and an integrated audio jack.
DUST RESISTANT
Equipped with dust filters on the top and bottom, the case effectively protects against dust while maintaining ventilation.
Radiator Support:
- Top: 360mm、 280mm
- Side: 240mm、 280mm
- Rear: 120mm、 140mm
Fan Support:
- Top: 3 x 120mm, 2 x 140mm
- Side: 3 x 120mm, 2 x 140mm
- Rear: 1 x 120mm, 1 x 140mm
- Bottom: 3 x 120mm, 3 x 140mm
| Cabinet |
| Cabinet Size |
MID-TOWER |
| Color |
Black |
| Material |
SPCC, ABS, Tempered Glass |
| Expansion Slots |
7 |
| Motherboard Size |
ATX,M-ATX,M-ITX |
| Max CPU Cooler Height |
180mm |
| Max PSU Length |
220mm |
| Max Gpu Length |
430mm |
| Max 3.5" HDD |
1 |
| Max 2.5" SSD |
3 |
| Dust Filters |
Top |
| Pre Installed Fans |
4 |
| Max Fan Support |
10 |
| Radiator Support |
360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel |
USB 3.0, USB Type C, HD Audio, LED Control, Monitor Mode Switch |
| Warranty |
1 Year |
| Note*** |
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
|
