Product Code:ATHENA-P1-BLACK
Features:
- 4 Built-in High Performance 120mm ARGB Fans
- Perforated Mesh Front Panel
- Underglow Light Strip Design
- Optimized Cable Management
- Extensibility for Airflow Side Intake
- Velcro Included
- Cable Cover Shroud
- Adjustable Graphic Card Support
- Additional SSD Bracket
- Sync with 5V ARGB Motherboard
- Tool-Free Installation Tempered Glass Window
- Support Mini-ITX, Micro-ATX and ATX Motherboards

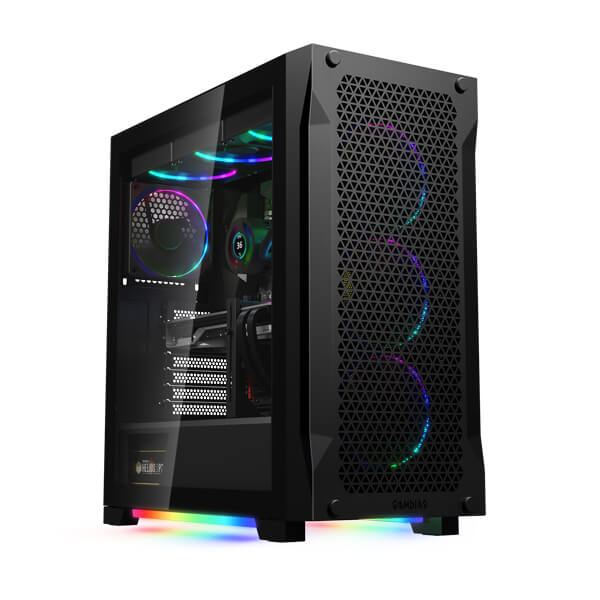

PREMIUM AIRFLOW. UNRESTRICTED FORM.
ATHENA P1 is an airflow-focused mid-tower case with unique lighting aesthetics and outstanding functionality. The case features a perforated mesh front panel with four built-in ARGB fans for top-tier airflow performance, ARGB underglow lighting strips, along with a spacious interior with an advanced cable management system to bring the best out of every build.

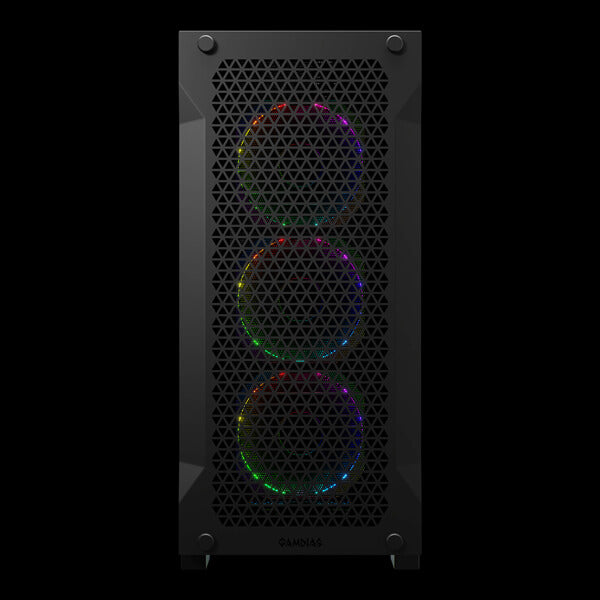

METALLIC PERFORATED MESH
The matte black metal mesh front panel takes a perforated design with an integrated magnetic dust filter for high airflow ventilation and dust prevention. Enjoy a tool-free removable front panel for ease of access to the front dust filter and fans.
ADVANCED AIRFLOW CONFIGURATION
The ATHENA P1 allows highly customizable airflow intake and exhaust configurations with a perforated front panel and mesh vents built throughout the case.
3+1 HIGH PERFORMANCE ARGB FANS
The case comes with four high-performance fans that provide high static pressure for optimized airflow guidance. The fans feature fully addressable low-profile ARGB lighting providing a subtle and modish look.
CONTROL AND SYNCHRONIZE
The ATHENA P1 supports system-wide ARGB to compatible motherboards with lighting synchronization that controls the 4 built-in ARGB fans and 2 ARGB light strips with a single push of a button.
FLEXIBLE GPU COMPATIBILITY
The 7 reusable PCI-e slots with 405mm in length offer flexible options to support up to RTX 40-series GPU and high-end PC components. Simply replace the preset slots with an additional GPU mounting kit and PCI-e cable to mount your graphics card vertically.

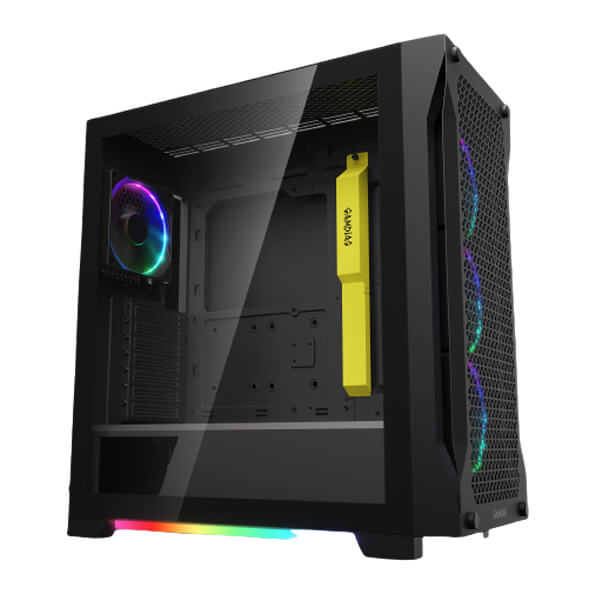

CLEANER UPGRADABILITY
ATHENA P1 is equipped with an integrated cable routing cover for a more intuitive and clean building experience and comes with a matte black GPU stand to support and prevent sag for your GPU.
OPTIMIZED CABLE MANAGEMENT
A well-designed cable routing system with included velcro straps behind the motherboard makes modding and creating a clean looking build easier than ever.
GEN 2 TYPE-C INTERFACE
The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, USB 3.0 port, an additional USB port, LED lighting controls, and additional audio connectivity.

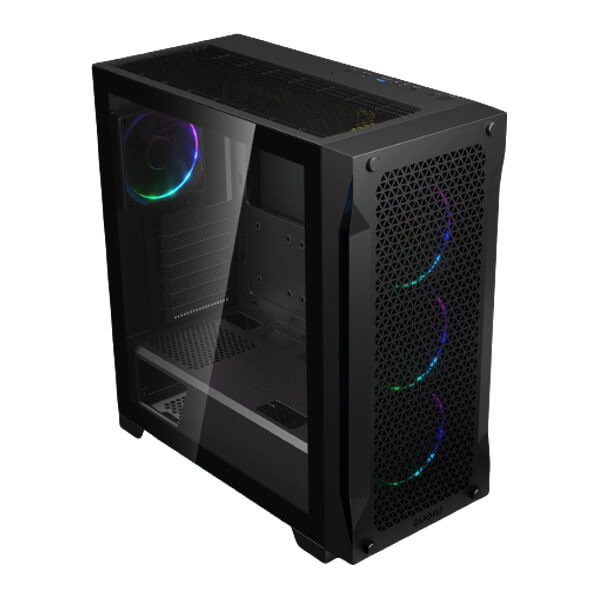

TEMPERED GLASS PANEL
The side tempered glass panel features a tool-free slide-off design and is scratch-resistant and transparent for a clear view of your build.
COOLING SUPPORT
The case supports up to 9 fans and up to a 360mm radiator in the front and at the top.
STORAGE COMPATIBILITY
With an additional SSD bracket, the case allows installation of up to 5 x 2.5" or 2 x 3.5" +2 x 2.5" or 3 x 2.5" +1 x 3.5" storages and accommodates PSU lengths up to 210mm.
BUILT FOR ENTHUSIASTS
The case focuses on high airflow configuration to allow the best cooling possible, with a matte black perforated front mesh panel along with built-in high-performance ARGB fans and lighting strips for the perfect performance and aesthetics. The interior supports the latest GPU and comes with an optimized cable routing system to make PC building easier than ever.
Specifications:
| Model Number |
ATHENA P1 |
| Case Type |
MID Tower |
| MB Support |
ATX、Micro-ATX、Mini-ITX |
| Synchronization |
5V 3-Pin Addressable Header |
| CASE Color |
Black |
| Expansion Slots |
7 |
| Material |
SPCC & ABS & Tempered glass |
| Window |
Left |
| Radiator Support |
Top: 360mm、280mm、 240mm / Front: 360mm、280mm、240mm / Rear: 120mm |
| Fan Support |
Top: 3 x 120mm 、2 x 140mm / Front: 3 x 120mm、3 x 140mm/ Rear: 1 x 120mm |
| Pre-installed Fans |
Front: 3 x 120mm ARGB Fans/ Rear: 1 x 120mm ARGB Fan |
| Drive Bays |
2 x 3.5" or 1 x 2.5"+1 x 3.5"(HDD Cage)
2 x 2.5"(HDD Cage) + 2 x 2.5'' (SSD Bracket) |
| I/O Port |
USB 3.0 x1, USB 2.0 x1, Type C x 1, HD Audio x1, LED Control x1 |
| Clearance |
CPU cooler height limitation:170mm
VGA length limitation:405mm
PSU length limitation:210mm |
| Dimension (L x W x H) |
465 x 220 x 485 mm
18.3 x 8.6 x 19.8 inch |
| Net Weight |
8.7 kg / 19.18 lb |
| Warranty |
1 Year |
| Note |
*** Features, Price, Specifications are subject to change without notice.
| Cabinet |
| Cabinet Size |
MID-TOWER |
| Color |
Black |
| Material |
SPCC, ABS, Tempered Glass |
| Expansion Slots |
7 |
| Motherboard Size |
ATX,M-ATX,M-ITX |
| Max CPU Cooler Height |
170mm |
| Max PSU Length |
210mm |
| Max Gpu Length |
405mm |
| Max 3.5" HDD |
2 |
| Max 2.5" SSD |
2 |
| Dust Filters |
Top |
| Pre Installed Fans |
4 |
| Max Fan Support |
7 |
| Radiator Support |
360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel |
USB 3.0, USB 2.0, USB Type C, HD Audio, LED Control |
| Warranty |
1 Year |
| Note*** |
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
|
|
