Product Code:AEOLUS-M3-1204R
Features:
- Ultra Silent fan
- ARGB PWM fan
- High-Quality Hydraulic bearing
- SATA power connector
- Airflow up to 69.01 CFM
- Optimized fan blades for high airflow performance
- Supports ARGB Motherboard Sync Functionality
- PWM AEOLUS Box Supports Up to 8 fans & 2 LED Strips
- PWM AEOLUS Box Extension enables more lighting effects
ULTRA PERFORMANCE. SILENT ACOUSTICS.

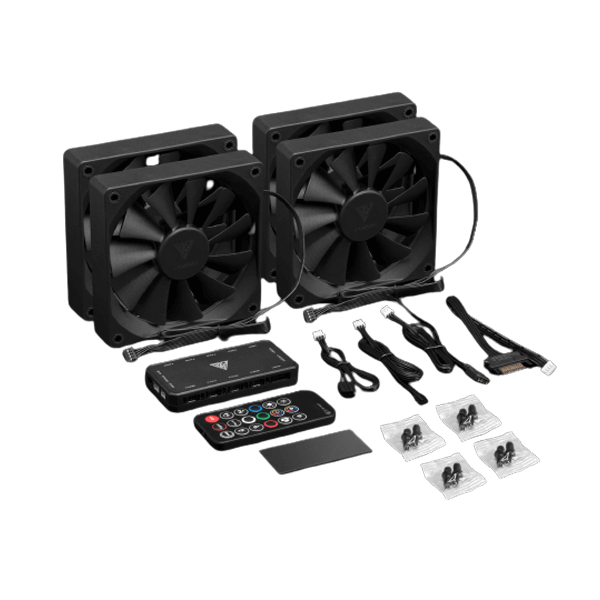

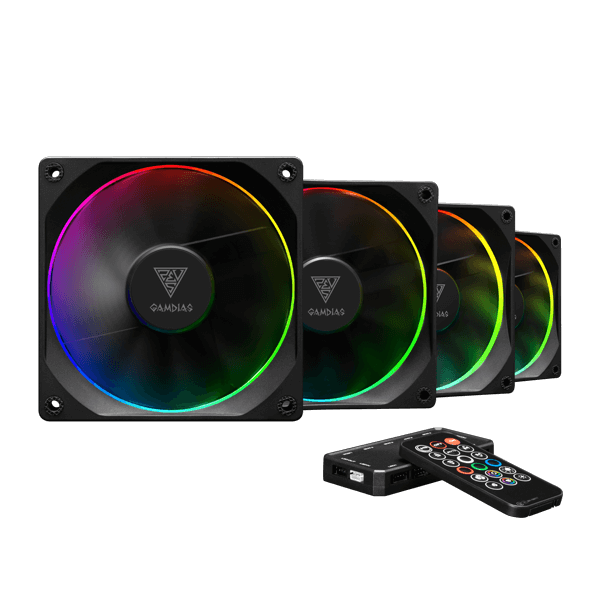

The AEOLUS M3-1204R is a 4-pack combo of the AEOLUS M3-1201 ARGB fan with an additional PWM AEOLUS box and controller. The fans feature stealth black optimized fan blades for the highest performance, modified hydraulic bearing with smart PWM function, and low-profile ARGB lighting to create the perfect aesthetics.
SUPERIOR AIRFLOW PERFORMANCE.
Built with emphasis on performance, The AEOLUS M3 fans can range from 800-2000RPM for extremely high air pressure. With optimized design and PWM, the fan airflow capabilities can ramp up to 69.01 CFM for maximum cooling with quiet operations.
REFINED FAN DESIGN.

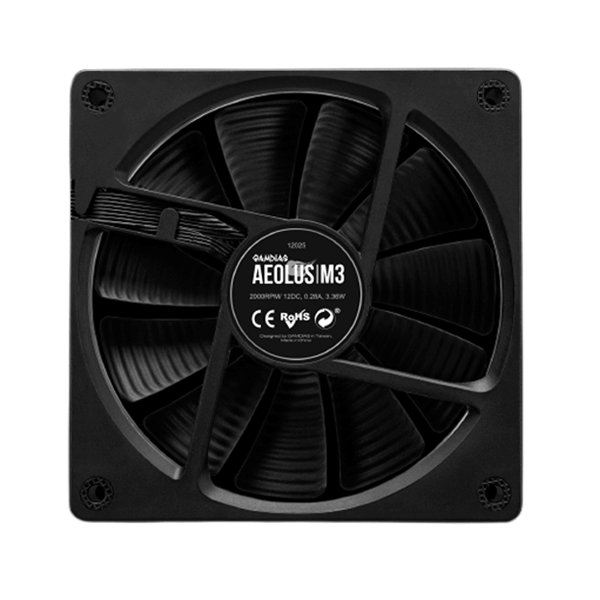

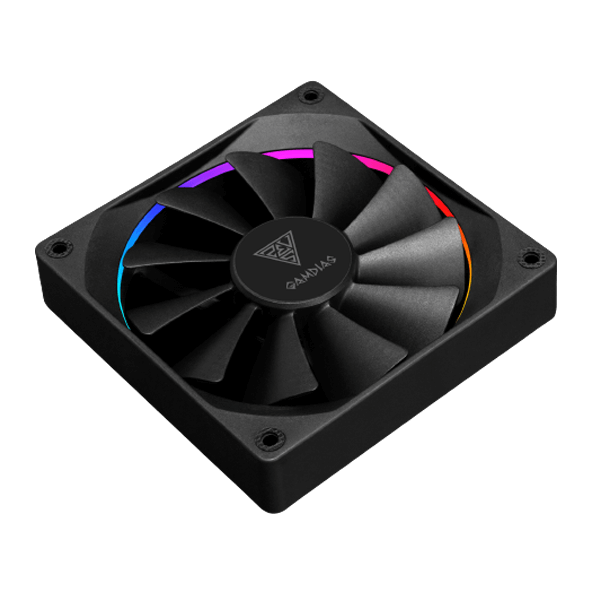

The fan frame features a chamfered design for a more robust air intake, while the altered fan blade design allows maximum airflow performance, better acoustics, and a minimalist style.
PREMIUM HYDRAULIC BEARING
With near-zero friction between moving parts, the AEOLUS M3 fans makes minimal noise while generating maximum airflow while having a long lifespan.
INTEGRATE YOUR STYLE
With the magnetic PWM AEOLUS box, you can add up to 8 fans & 2 additional LED strips and easily sync and customize your build with an auxiliary remote.
CUSTOMIZABLE AND ADAPTIVE
AEOLUS M3 supports addressable RGB sync via Motherboard manufacturer's sync software and also has 55 built-in lighting effects accessible from an included remote or the pc case button.
LOW-PROFILE CONCENTRIC LIGHTING

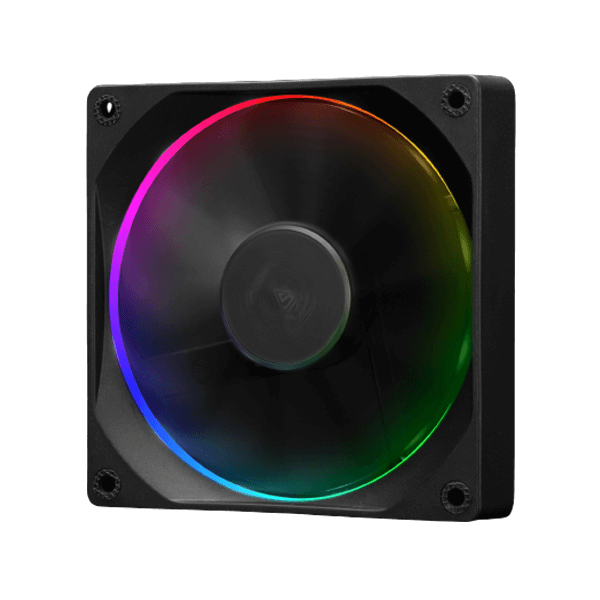

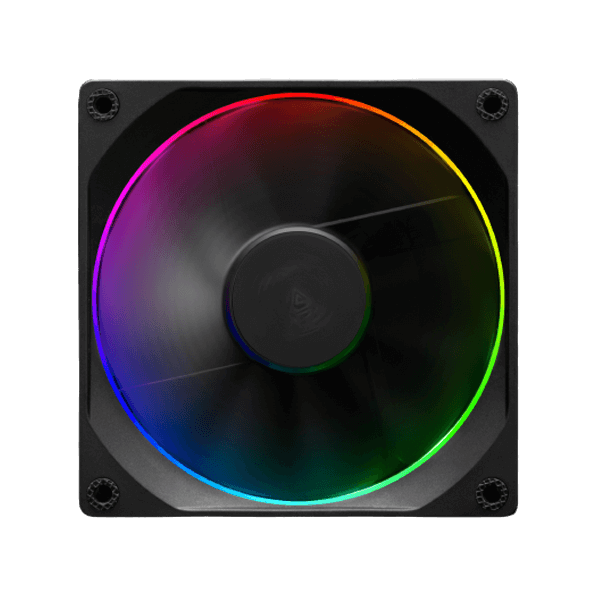

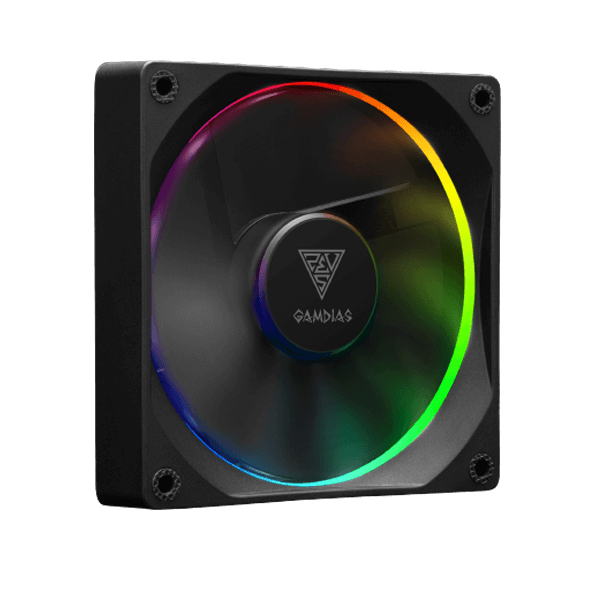

Fully addressable RGB lighting rings are integrated within the AEOLUS M3 fan frame for a more low-profile take on RGB, providing a subtle yet modish look without losing the vibrant colors of the ARGB lighting.
Specifications:
| Model Number |
AEOLUS M3-1204R |
| Package Contents |
Fan x 4
Remote Control x 1
PWM AEOLUS BOX x 1
Mounting Kit x 1 |
| FAN |
| Fan |
1 |
| Remote Control |
1 |
| Fan Size |
120 mm |
| FAN Dimensions |
120 x 120 x 25 mm |
| Lighting Effect |
55 Neon-Flex RGB |
| LED NUMBER |
12 |
| Bearing |
Hydraulic |
| Connector |
8 Pin |
| Fan Speed |
800 - 2000 RPM±10% |
| Air Flow |
69.01 CFM |
| Air Pressure |
2.37 mmH2O |
| Rated Voltage |
12 V (Fan) / 5V(LED) |
| PWM Support |
Yes |
| REMOTE CONTROL |
| Selectable Fan Speeds |
Yes |
| Selectable Light Speeds |
Yes |
| Selectable Brightness |
Yes |
| CONTROL BOX |
| Model |
PWM AEOLUS Box |
| Dimensions |
92 x 46 x 13 mm |
| Power Connector |
SATA |
| Built-In Magnet |
Yes |
| Support Fans Number |
8 |
| Support LED Strips Number |
2 |
| Support Daisy Chain |
Yes |
| Support Motherboard Sync Software (5V Addressable Header) |
Yes |
| Built-in Lighting Effect |
55 |
| Warranty |
1 Year |
| Note |
Features, Price, Specifications are subject to change without notice. Images used for representation purpose only
| Cabinet Fan |
| LED |
ARGB |
| Size |
120 mm |
| Pack |
Four |
| Warranty |
1 Year |
|
