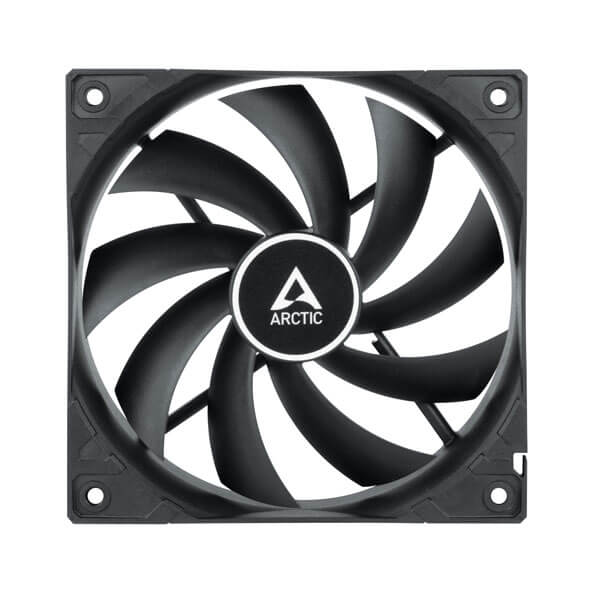

Arctic F12 PWM PST Black Cabinet Fan (Single Pack)

Features:

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter.

Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes ten fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.

Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimising the noise level yet delivering the desired airflow and pressure.

Two Way Installation

• Blow warm air out of the case
• Draw cool air into your case

Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.

Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the F12 PWM PST.

Specifications:

Model Name	F12 PWM PST (ACFAN00200A)
Color	Black
Performance
Fan Speed	230—1350 rpm
Airflow	53 cfm | 90.1 m³/h
Static Pressure	1 mmH2O
Noise Level	0.3 Sone
Fan
Fan Frame	Standard
Control Type	PWM PST
Connector	4-Pin Connector + 4-Pin Socket
Fan Bearing	Fluid Dynamic Bearing
Operating Ambient Temperature	0—40 °C
Electric Characteristics
Typical Voltage	12 V DC
Starting Voltage	6 V
Current | Voltage	0.12 A | 12 V DC
Cable Length	400 mm
Size & Weight
Length	120 mm
Width	120 mm
Height	25 mm
Weight	109 g
Warranty	6 Years
Note	*** Features, Price, Specifications are subject to change without notice.
