| CPU |
|
| Socket |
AMD Socket AM5 |
| Supported Processors |
AMD Ryzen™ 9000 Series Processors, AMD Ryzen™ 8000 Series Processors, AMD Ryzen™ 7000 Series Processors |
| Chipset |
AMD B850 |
| Memory |
|
| Supported Memory |
DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s |
| DIMM Sockets |
2 x DDR5 DIMM sockets |
| Maximum System Memory |
Up to 128 GB (64 GB single DIMM capacity) |
| Memory Architecture |
Dual channel |
| Supported Memory Modules |
Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, AMD EXtended Profiles for Overclocking (AMD EXPO™), Extreme Memory Profile (XMP) |
| Onboard Graphics |
|
| Integrated Graphics |
AMD Radeon™ Graphics |
| HDMI port |
1 x, supporting 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR) |
| DisplayPort |
1 x, supporting 3840x2160@144 Hz (DisplayPort 1.4) |
| Audio |
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
|
| Model |
MediaTek Wi-Fi 6E MT7902 |
| Wi-Fi Standard |
WIFI a, b, g, n, ac, ax (2.4/5/6 GHz) |
| Bluetooth |
BLUETOOTH 5.3 |
| Expansion Slots |
|
| PCI Express x16 (CPU) |
1 x (PCIe 5.0 x16, PCIe 4.0 x8, or PCIe 4.0 x4) |
| PCI Express x16 (Chipset) |
1 x (PCIe 4.0 x4) |
| Storage Interface |
|
| M.2 connector (M2A_CPU) |
1 x (PCIe 5.0 x4/x2 or PCIe 4.0 x4/x2) |
| M.2 connector (M2B_CPU) |
1 x (PCIe 4.0 x4/x2 or PCIe 4.0 x2) |
| M.2 connector (M2C_SB) |
1 x (PCIe 4.0 x2) |
| SATA 6Gb/s connectors |
4 x |
| RAID Support |
RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe; RAID 0, RAID 1, and RAID 10 for SATA |
| USB |
|
| Back Panel Ports |
1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 2 Type-A, 1 x USB 2.0/1.1 |
| Internal Headers |
1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Other Ports |
4 x USB 3.2 Gen 1 (2 on back, 2 internal) 5 x USB 2.0/1.1 (1 on back, 4 internal) |
| Internal I/O Connectors |
|
| Power |
1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| Fan Headers |
1 x CPU fan, 1 x CPU fan/water cooling pump, 1 x system fan, 1 x system fan/water cooling pump |
| RGB Headers |
3 x addressable RGB Gen2 LED strip, 1 x RGB LED strip |
| Other Headers |
3 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB Type-C®, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x Trusted Platform Module, 1 x reset jumper, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button |

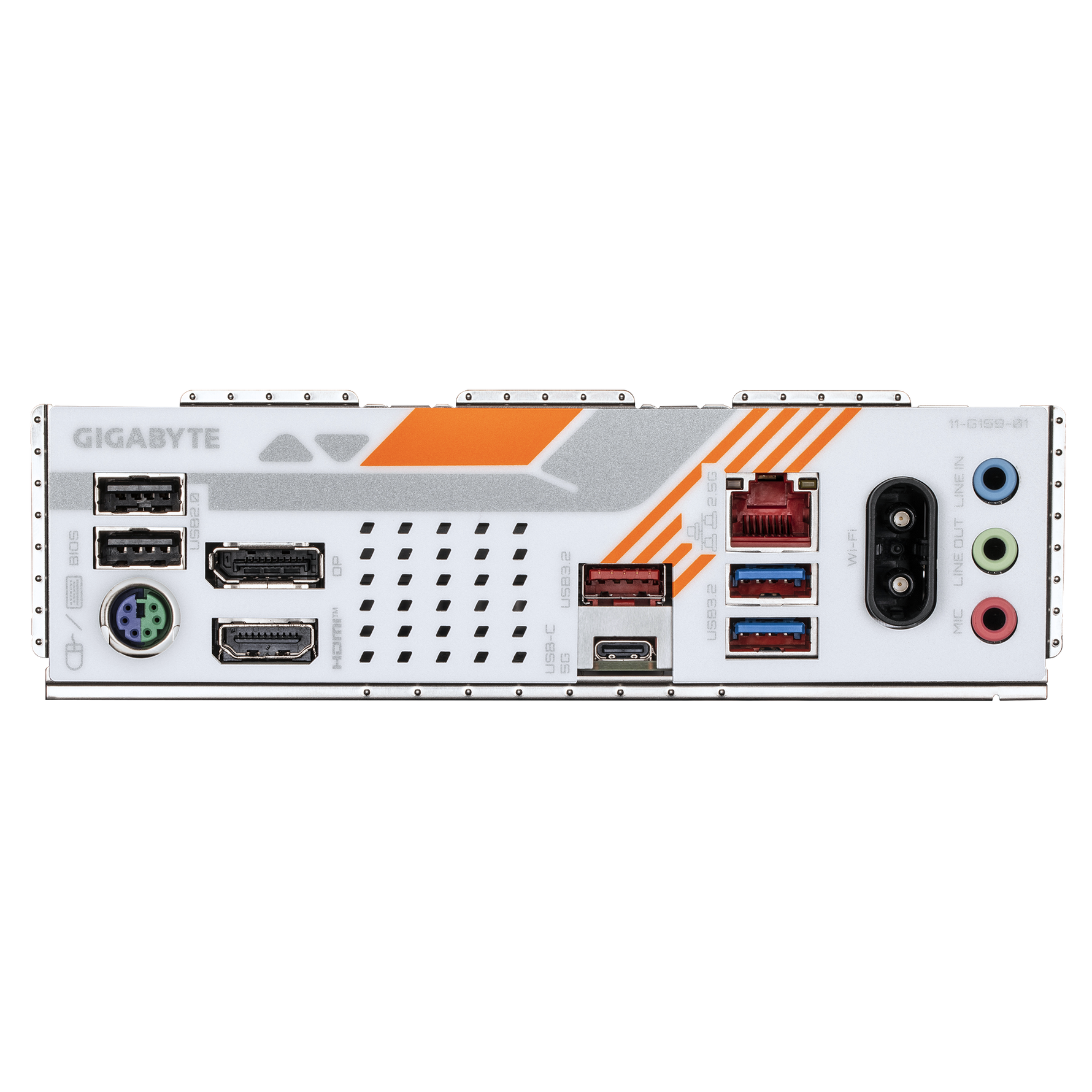

| Back Panel Connectors |
|
| Ports |
1 x HDMI, 1 x DisplayPort, 1 x PS/2, 1 x USB Type-C®, 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0/1.1, 1 x RJ-45, 2 x antenna, 3 x audio jacks |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control |
| BIOS |
1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software |
Norton® Internet Security (OEM version) |
| Operating System |
Windows 11 64-bit, Windows 10 64-bit |
| Form Factor |
Micro ATX (24.4cm x 24.4cm) |
| Note |
Features, price, and specifications are subject to change without notice. Images are for representation only. |
