Gigabyte B650EM FORCE WIFI6E

(0)
Low in stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Gigabyte B650EM FORCE WIFI6E

Rs. 11,990.00

Rs. 11,990.00

Flattering fit

Enjoy the flattering fit and butterfly soft feeling

Flattering fit

Enjoy the flattering fit and butterfly soft feeling

Authencity Guaranteed

We only sell authentic products from verified brand partners and retail partners globally.

  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
SKU : B650EM-FORCE-WF6E
BRAND : Gigabyte
SOCKET : AM5
CHIPSET : B650
MEMORY TYPE : DDR5
FORM FACTOR : M-ATX
Product Description

B650EM FORCE WIFI6E

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
  • Unparalleled Performance：8+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：PCIe 5.0 x4 M.2 Connector
  • EZ-Latch：PCIe x16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：HDMI, DisplayPort
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Category Details
CPU AMD Socket AM5Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Chipset AMD B650
Memory DDR5 9600(OC) to 4400 MT/sDual Channel ArchitectureNon-ECC Unbuffered DIMM (1Rx8 / 2Rx8 / 1Rx16)Supports AMD EXPO™ and XMP
Onboard Graphics AMD Radeon™ Graphics (CPU dependent)HDMI 2.1 – up to 4096×2160 @60HzDisplayPort 1.4 – up to 3840×2160 @144Hz
Audio Realtek® Audio CODECHigh Definition Audio2 / 4 / 5.1 / 7.1-channel
LAN Realtek® 2.5GbE LAN (2.5Gbps / 1Gbps / 100Mbps)
Wireless MediaTek Wi-Fi 6E MT7902Wi-Fi a/b/g/n/ac/ax (2.4/5/6GHz)Bluetooth 5.3
Expansion Slots 1 × PCIe x16 (CPU)• PCIe 5.0 x16 (Ryzen 9000/7000)• PCIe 4.0 x8 / x4 (Ryzen 8000)1 × PCIe 4.0 x4 (Chipset)
Storage – M.2 M2A_CPU: PCIe 5.0 x4 (Ryzen 9000/7000)M2B_CPU: PCIe 4.0 x4M2C_SB: PCIe 4.0 x2
Storage – SATA 4 × SATA 6Gb/s
RAID (NVMe) RAID 0 / 1 / 10RAID 5 (Ryzen 9000 only)
RAID (SATA) RAID 0 / 1 / 10
USB (CPU) 1 × USB-C (USB 3.2 Gen 1)1 × USB 3.2 Gen 2 Type-A1 × USB 2.0
USB (Chipset) 1 × USB-C (USB 3.2 Gen 1, header)4 × USB 3.2 Gen 15 × USB 2.0
Internal I/O 24-pin ATX Power8-pin CPU PowerCPU Fan + Pump Header2 × System Fan/Pump Headers3 × ARGB Gen2 Headers1 × RGB Header3 × M.2 Slots4 × SATA PortsUSB-C HeaderUSB 3.2 Header2 × USB 2.0 HeadersFront Panel + Audio HeaderTPM HeaderClear CMOS JumperQ-Flash Plus Button

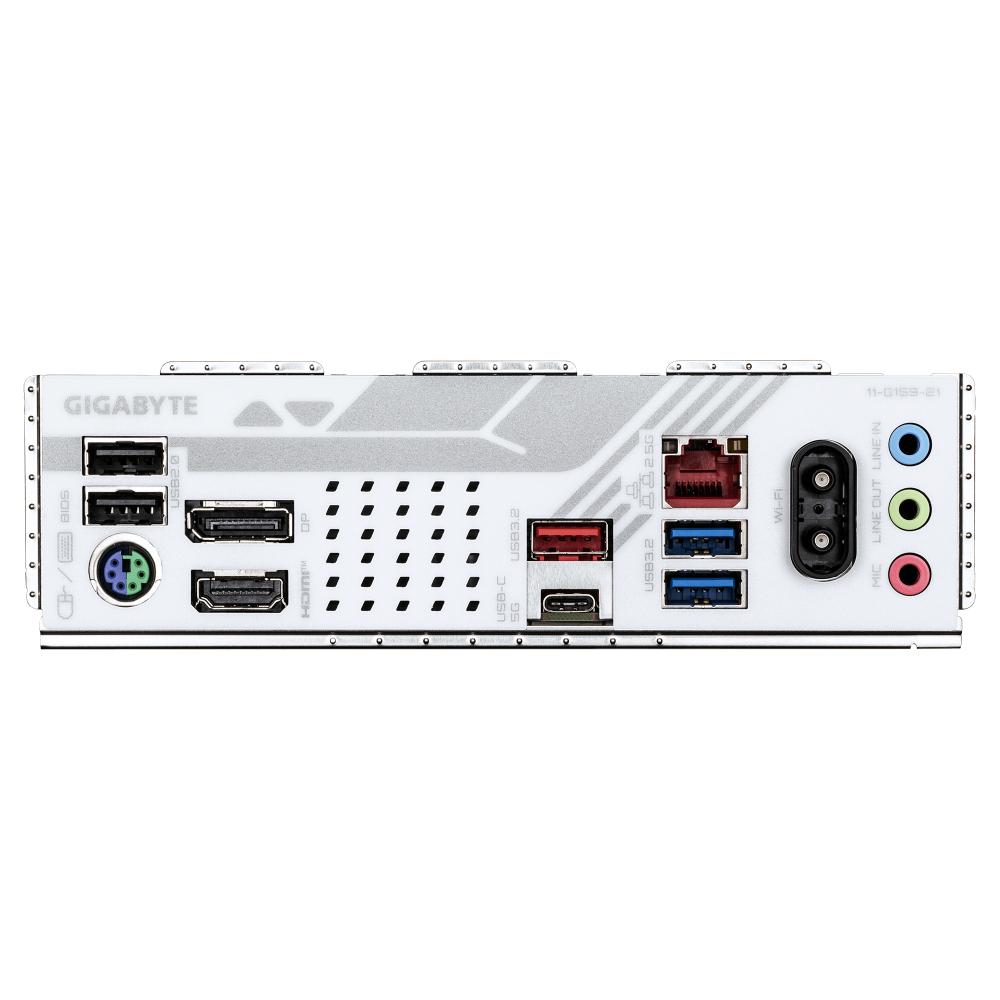

Back Panel I/O HDMIDisplayPortPS/2 PortUSB-C (USB 3.2 Gen 1)2 × USB 3.2 Gen 11 × USB 3.2 Gen 2 Type-A2 × USB 2.0RJ-45 LAN2 × Antenna Ports3 × Audio Jacks
I/O Controller iTE® I/O Controller Chip
Hardware Monitoring Voltage / Temperature / Fan Speed DetectionWater Cooling Flow RateFan Fail Warning
BIOS 256 Mbit FlashAMI UEFI BIOSACPI 5.0, SMBIOS 2.7
Special Features GIGABYTE Control Center (GCC)Q-Flash / Q-Flash PlusSmart Backup
Bundled Software Norton® Internet Security (OEM)
Operating System Windows 11 64-bitWindows 10 64-bit
Form Factor Micro-ATX (24.4 × 24.4 cm)
