- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen 7000, 8000 and 9000 series desktop processors
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and AEMP to simplify setup and improve performance
- ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
- Robust Power Solution: 10+2+1 power solution rated for 110A per stage with ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads, with L-shaped backplate
- Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot, all with substantial cooling solutions

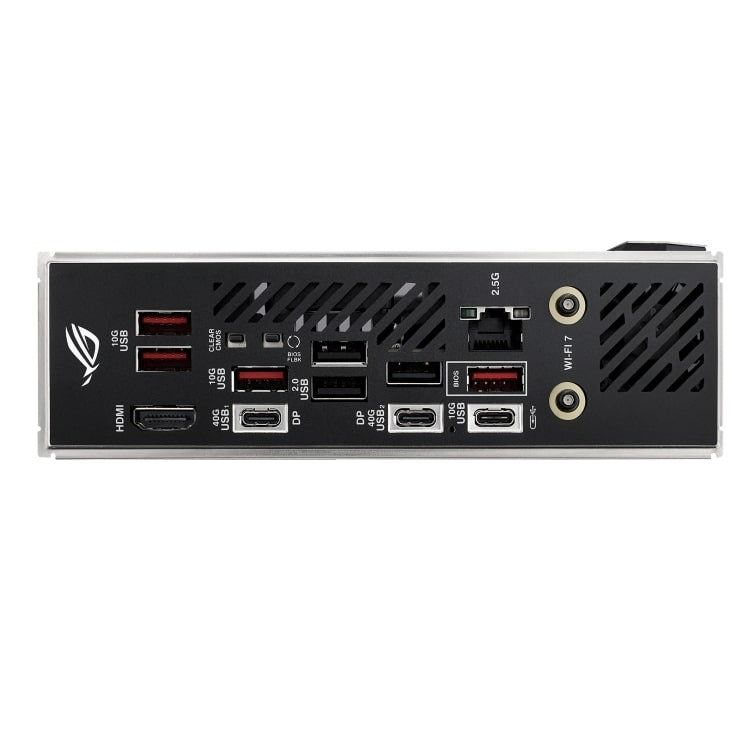

- Abundant Connectivity: Dual USB4 Type-C ports, USB 10Gbps Type-C front-panel connector, seven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI port
- High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet

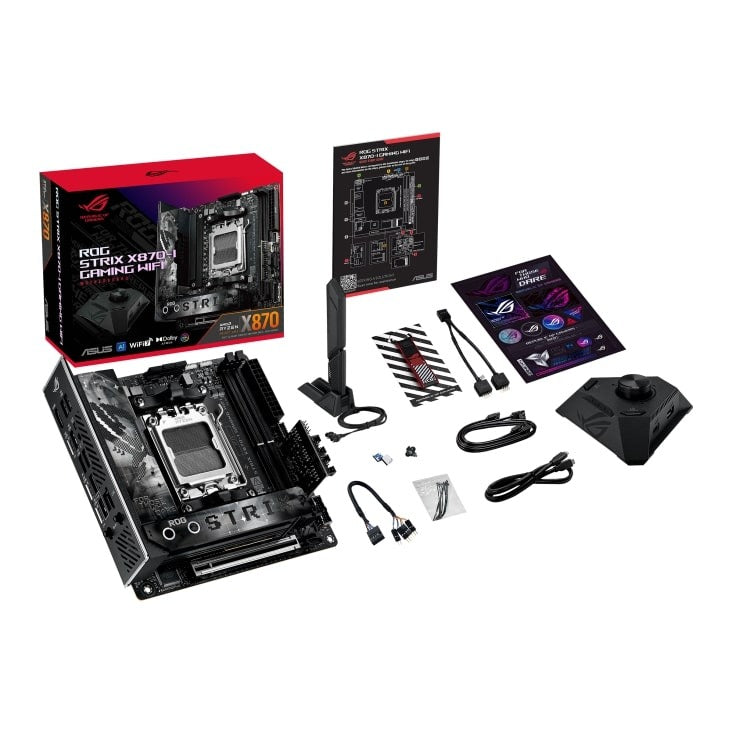

- DIY Friendly Design: Bundled ROG FPS-II Card and ROG Strix Hive II, PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield

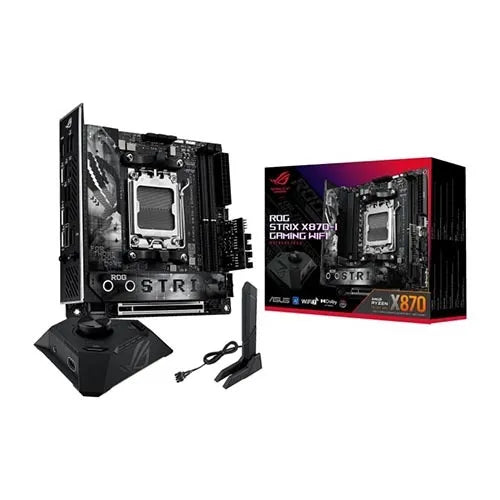

Power immersive gaming and content creation with the ASUS ROG Strix X870-I GAMING WIFI AM5 Mini-ITX Motherboard as your foundation for your custom build. Supporting AMD 7000, 8000, and 9000 series processors, this compact socket AM5 motherboard offers fast connectivity and AI-driven performance features.
Two DDR5 DIMM slots are available, supporting up to 96GB of memory for smooth multitasking, large projects, and demanding applications. For storage, you can install one M.2 2280 PCIe 5.0 x4 SSD alongside an M.2 PCIe 4.0 drive to store your games library and important files. There are also two SATA III connectors. A PCIe 5.0 x16 slot is available for expansions such as a powerful graphics card. With two USB4 ports on the rear panel, you can connect 40 Gb/s compatible devices or a USB-C compatible 8K display. They are complemented by a USB-C and four USB-A ports that can transfer up to 10 Gb/s with compatible devices. Three USB-A 2.0 are also available. The included ROG Strix Hive II module keeps the 3.5mm audio jack and volume controls within easy reach alongside a 10 Gb/s USB-A port and diagnostic functions. Built-in Wi-Fi 7 (802.11be) support and a 2.5 Gb/s Ethernet port provide you with fast connections to compatible network devices. Windows 11 64-bit is required to take advantage of all the motherboard’s features.
ASUS AI Intelligence
AI Overclocking
Maximize CPU performance with predictions for ideal CPU and cooling settings, pushing your system to its limits.
AI Cooling II
Maintain optimal thermals and reduced noise with dynamic fan speeds adjustments based on CPU temperatures.
AI Networking II
Optimize network performance and help ensure seamless connectivity and maximized Wi-Fi 7 speeds.
Performance Overclocking
Dynamic OC Switcher
The Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The Overclocking Load Guard has an enhanced current protection mechanism to help prevent users from experiencing system crashes during overclocking.
Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current and temperature limits independently so that you can bend CPU performance to your will.
Precision Boost Overdrive Enhancement
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
Performance
Overclocking Memory
This motherboard is ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
Power Design
Sporting 10+2+1 power stages with an 8-pin ProCool II power connector, the ROG STRIX X870-I GAMING WIFI delivers reliable and stable performance with high-core count CPUs, graphics cards, and other power-intensive components. The durable chokes, capacitors, and 10-layer PCB quickly dissipates heat around voltage regulators and offers greater overclocking headroom.
Advanced Cooling
Designed for overclocking, this motherboard maintains optimal performance and stability with fan and AIO pump headers, and heatsinks for the M.2 slots and VRM.
Connectivity
ROG Strix Hive II
The ROG Strix Hive II accessory delivers user-friendly access to hardware and software features. It connects to your computer via USB-C and provides access to a volume dial, a 3.5mm audio jack, FlexKey buttons, and Q-LED status lights. Inside is an ESS SABRE9260Q DAC, which provides high-quality stereo 24-bit / 96 kHz playback.
ROG FPS Card
The vertically mounted ROG FPS card groups I/O functions together to save space and provide tidy cable management.
Wi-Fi 7
Wi-Fi 7 supports 320 MHz bandwidth on the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.
2.5G Ethernet
An onboard 2.5G Ethernet port provides fast and stable connectivity to compatible wired devices.
Dual USB4 Connectivity
Transfer massive project files with 40 Gb/s compatible storage drives. The USB4 ports also allow you to connect either one 8K monitor or two 4K displays for enhanced multitasking.
DIY Friendly
Easy M.2 Installation
The ASUS M.2 Q-Latch allows you to quickly install or remove M.2 SSDs without the need for tools or screws.
PCIe Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
Q-Antenna
With Q-Antenna, attaching a Wi-Fi antenna to your PC is a snap. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components are functioning normally during startup. It can also alert them when memory modules have not been properly installed.
Clear CMOS and BIOS FlashBack
Clear the CMOS at the touch of a button to help remove data corruption from the chip. BIOS FlashBack makes BIOS updates easy. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button. No CPU or memory needed.
Software Utilities
Dolby Atmos
Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above or below the listener.
ASUS GlideX
Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.
HWINFO
This comprehensive diagnostic tool provides detailed information about hardware components and real-time system monitoring.
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
AIDA64 Extreme
The AIDA64 Extreme tool provides detailed information about the hardware components and software, perform benchmark tests, and help prevent possible hardware issues. A 60-day trial subscription is included.
Armoury Crate
Customize Aura Sync RGB and control ASUS devices using the Armoury Crate software.
Play in Style
Addressable Gen 2 RGB headers
The two addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear. You can sync the effects Aura Sync compatible peripherals such as keyboards, mice, and monitors.
