| Model |

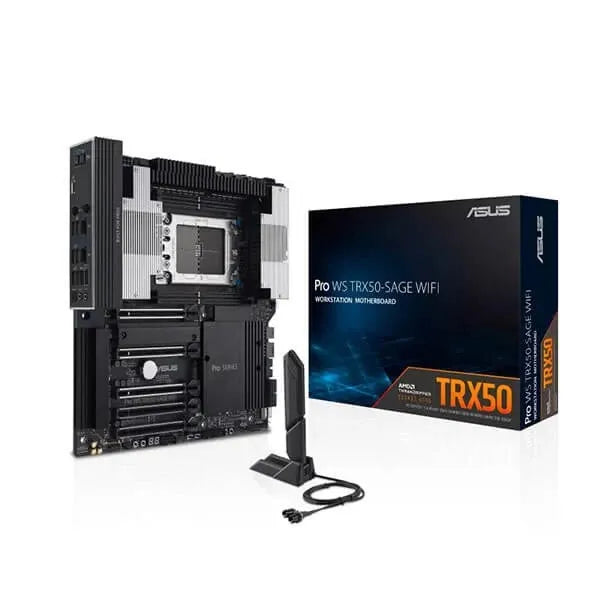

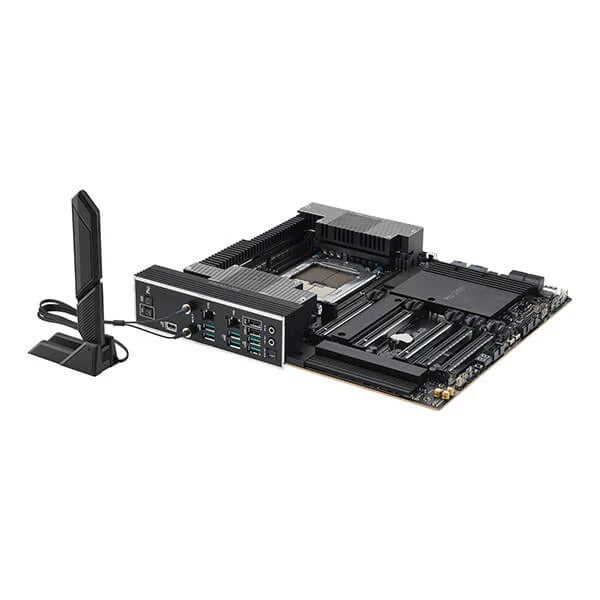

Pro WS TRX50-SAGE WIFI |
| CPU |
AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors |
| Chipset |
AMD TRX50 Chipset |
| Memory |
4 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site |
| Expansion Slots |
AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors
- 2 x PCIe 5.0 x16 slots
- 1 x PCIe 5.0 x16 slot(x8 mode)
- 1 x PCIe 4.0 x16 slot
- 1 x PCIe 4.0 x16 slot(x4 mode)
* Please check the PCIe bifurcation table on the support site |
| Storage |
Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. |
| Ethernet |
- 1 x Marvell® AQtion 10Gb Ethernet
- 1 x Intel® I226-LM 2.5Gb Ethernet
|
| Wireless & Bluetooth |
Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB |
- Rear USB (Total 9 ports)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 6 x USB 10Gbps ports (6 x Type-A )
- 2 x USB 2.0 ports (2 x Type-A )
- Front USB (Total 7 ports)
- 1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+)
- 1 x USB 5Gbps header supports 2 additional USB 5G ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
|
| Audio |
Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback |

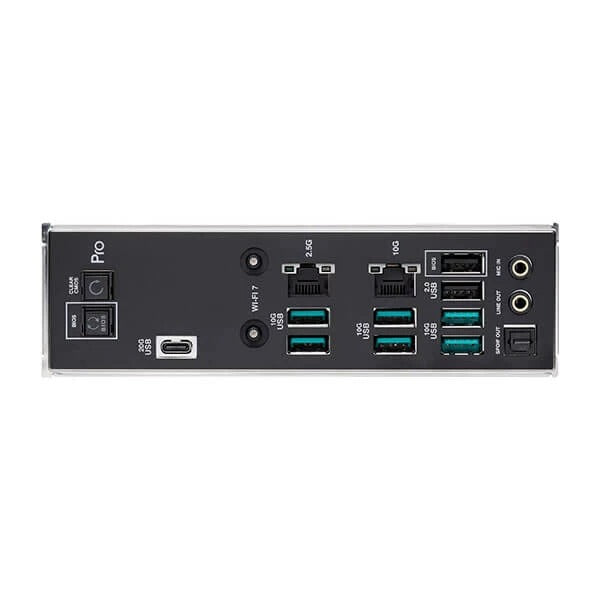

| Back Panel I/O Ports |
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 6 x USB 10Gbps ports (6 x Type-A)
- 2 x USB 2.0 port (2 x Type-A)
- 1 x Wi-Fi Module
- 1 x Marvell® AQtion 10Gb Ethernet port
- 1 x Intel® 2.5Gb Ethernet port
- 2 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
|
| Internal I/O Connectors |
Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x W_PUMP+ header
- 4 x 4-pin Chassis Fan headers
- 2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
- 2 x 24-pin Main Power connectors
- 2 x 8-pin +12V Power connectors
- 2 x 8-pin PCIe to CPU power connectors
- 1 x 6-pin PCIe Power connector
- 1 x 8-pin PCIe Power connector
Storage related
- 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
- 1 x SlimSAS port
USB
- 1 x USB 20Gbps connector supports USB Type-C®
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
- 1 x BMC header1 x COM Port header
- 1 x USB4 header1 x FlexKey button
- 1 x Front panel audio header (F_AUDIO)
- 1 x Start button
- 1 x Safe boot button
- 1 x ReTry button1 x LN2 mode jumper
- 1 x Slow mode switch
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin system panel header
- 1 x Chassis intrusion header
- 1 x Thermal Sensor header
|
| Special Features |
ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink and onboard thermal pads - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMMBespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection |
| Software Features |
ASUS Exclusive Software Armoury Crate- Fan Xpert 4 ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash UtilityFlexKey |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE (UEFI mode) |
| Accessories |
Cables
- 2 x SATA 6Gb/s cables
- 1 x CPU 8-pin to PCIe 8-pin adapter cable package
- 1 x Thermistor cable pack
Miscellaneous
- 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
- 1 x M.2 Q-Latch package(2 in 1)
- 2 x M.2 Rubber Packages
- 1 x Q-connectorDocumentation
- 1 x ACC Express Activation Key Card
- 1 x QSG
|
| Operating System |
Windows® 11 64-bit |
| Form Factor |
CEB Form Factor 12 inch x 11 inch (30.5 cm x 28.0 cm) |
| Warranty |
3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
