| Model |

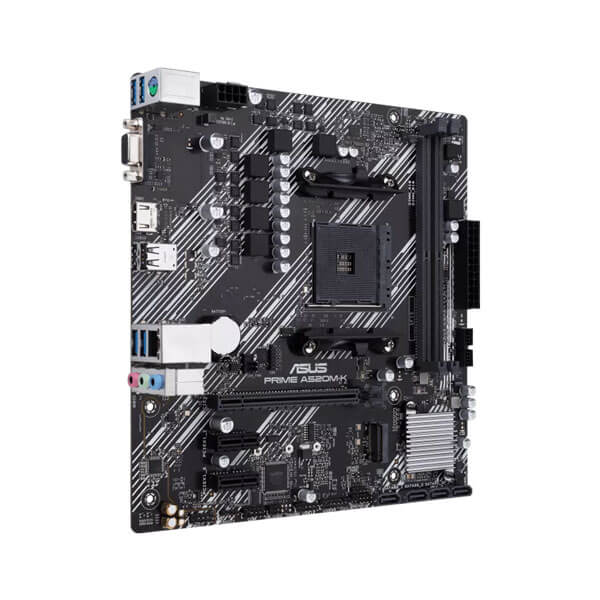

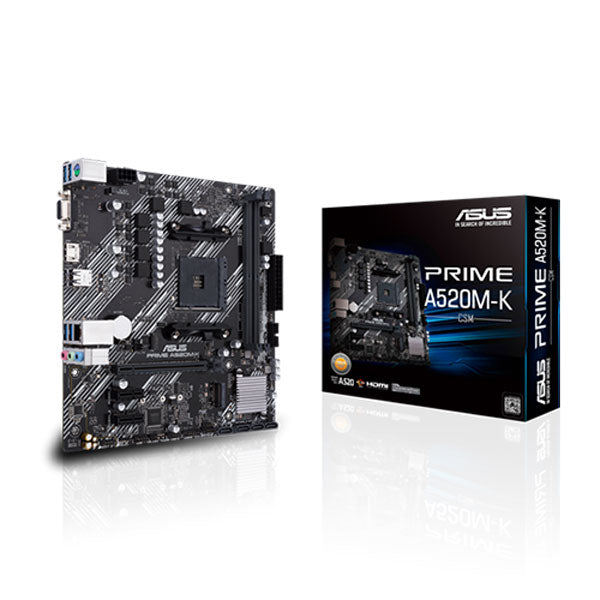

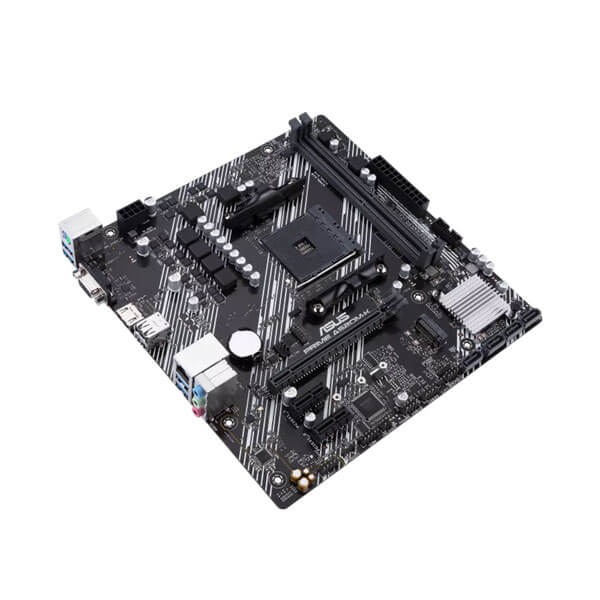

PRIME A520M-K/CSM |
| CPU |
AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors |
| Chipset |
AMD A520 |
| Memory |
2 x DIMM, Max. 64GB, DDR4
4866(O.C)/4600(O.C)/4466(O.C.)/
4400(O.C)/4333(O.C.)/4266(O.C.)
/4200(O.C.)/4133(O.C.)/4000(O.C.)
/3866(O.C.)/3733(O.C.)/3600(O.C.)/
3466(O.C.)/3400(O.C.)/3333(O.C.)/
3200/3000/2933/2800/2666/2400/
2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
|
| Graphic |
1 x D-Sub
1 x HDMI 2.1(4K@60HZ) |
| Expansion Slots |
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1
|
| Storage |
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
|
| LAN |
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard |
| Audio |
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
Dedicated audio PCB layers
|
| USB Ports |
Rear USB Port ( Total 6 )
- 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
- 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
- 4 x USB 2.0 port(s)(4 x Type-A)
|
| Software Features |
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
| ASUS Special Features |
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design |
| Back I/O Ports |
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 2 x USB 2.0
- 3 x Audio jack(s)
|
| Internal I/O Ports |
- 1 x CPU Fan connector(s)
- 1 x Chassis Fan connector(s)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x SPI TPM header
- 4 x SATA 6Gb/s connector(s)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 8-pin EATX 12V Power connectors
- 1 x Front panel audio connector(s) (AAFP)
- 1 x Clear CMOS jumper(s)
- 1 x System panel connector
- 1 x COM port header
- 1 x Speaker connector
|
| Accessories |
User´s manual
1 x ACC Express Activation Key Card
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s) |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Operating System |
Windows 10 64-bit |
| Form Factor |
mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
| Warranty |
3 Years |
| Note |
Features, Price, Specifications are subject to change without notice.
Images used for representation purpose only
| Motherboard |
| Platform |
AMD |
| Socket |
AM4 |
| Cpu Type |
Ryzen 5000, Ryzen 5000-G, Ryzen 4000-G, Ryzen 3000, Ryzen 3000-G |
| Chipset |
A520 |
| Memory Speed |
up to 4866 |
| Max Memory Support |
64 GB |
| Supported Memory Type |
DDR4 |
| Channel Supported |
Dual Channel |
| Memory Feature |
Un-buffered Memory
Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU
|
| Graphics Port |
1 x HDMI 2.1 |
| Expansion Slots |
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
AMD A520 Chipset
2 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x16 mode)
|
| Back Panel I/O Ports |
4 x USB 3.2 Gen 1 (blue) Type-A
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 2.0
3 x Audio jack(s)
|
| Internal I/O Connector |
1 x COM port header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
|
| Form Factor |
Micro-ATX |
| Warranty |
3 Years |
| Note |
Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only
|
|
